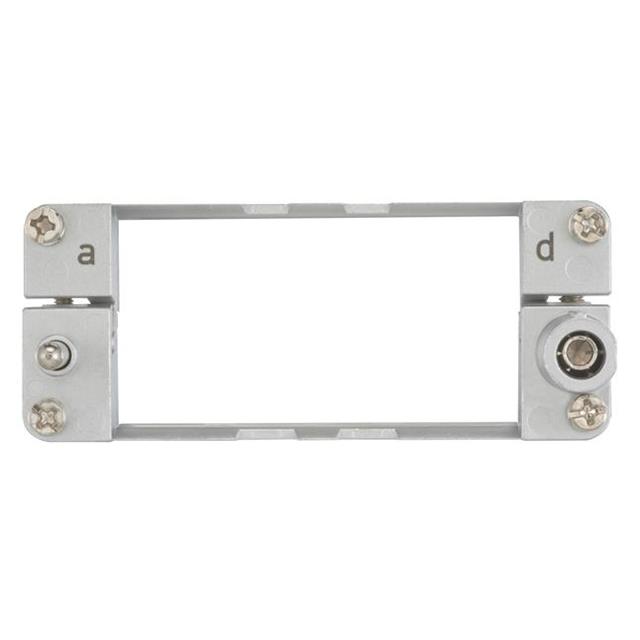

09140160313
Or copy the link below:
- Mfr.Part #
- 09140160313
- Manufacturer
- HARTING
- Package / Case
- Module
- Datasheet
- Download
- Description
- FRAME HINGED FOR 4MOD
- Stock
- 15
- In Stock ：
- 15
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Frames
- Body Material :
- Zinc
- Body Plating :
- Silver
- Package / Case :
- Module
- Includes :
- 5 pcs - 1 Frame, 4 Screws
- REACH SVHC :
- No SVHC
- Contact Gender :
- Male, Female
- Frame Type :
- Retaining Frame, Hinged
- Depth :
- 36.5mm
- IEC Conformance :
- No
- Gender :
- Female/Male
- Packaging :
- Bulk
- RoHS Status :
- ROHS3 Compliant
- DIN Conformance :
- No
- MIL Conformance :
- No
- Size :
- 16b
- Orientation :
- Straight
- Length :
- 84.5mm
- Number of Modules :
- 4
- Series :
- Han-Modular®
- Connector Support Type :
- CONNECTOR ACCESSORY
- Operating Temperature :
- -40°C~125°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 5 Weeks
- Contact Material :
- Aluminium
- Connector Type :
- Power, Rectangular
- Mounting Option 1 :
- M3X10
- Material :
- Zinc Die Cast
- Datasheets
- 09140160313
09140160313 datasheet pdf and Heavy Duty Connectors - Frames product details from HARTING stock available at Xinshop
