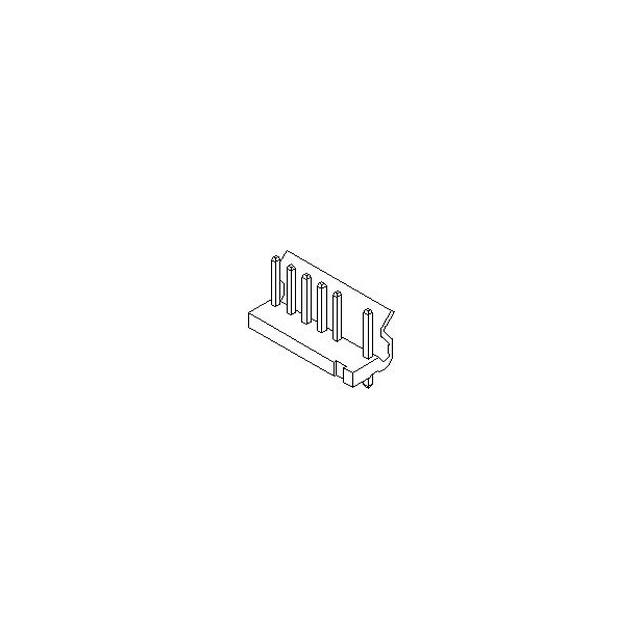

09-65-2029

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Body Orientation :

Straight

Contact Finish Thickness - Mating :

-

Contact Pattern :

RECTANGULAR

Housing Material :

Nylon

Body/Shell Style :

Receptacle

Operating Temperature :

-40 to 105 °C

Contact Material :

Brass

Filter Feature :

No

Contact Plating :

Tin

Mounting Option 1 :

LOCKING

Body Depth :

0.482 inch

Number of Rows :

1

Pbfree Code :

yes

Termination Type :

Solder

Contact Style :

SQ PIN-SKT

Insulation Color :

-

Number of Positions :

2

IEC Conformance :

No

Number of Contacts :

2

RoHS :

Compliant

Reach Compliance Code :

Compliant

Mixed Contacts :

No

Contact Gender :

Male

Material Flammability Rating :

UL94 V-2

Package :

Bag

Features :

-

Manufacturer Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Insulation Material :

Polyamide (PA66), Nylon 6/6

UL Flammability Code :

94V-2

Connector Type :

Header

Country of Origin :

TW

Contact Finish - Mating :

Tin

Dielectric Withstanding Voltage :

1500VAC V

Mount :

Through Hole

Body Breadth :

0.423 inch

Mated Stacking Heights :

-

MIL Conformance :

No

Orientation :

Vertical

Withdrawl Force-Min :

3.1136 N

Style :

Board to Cable/Wire

Number Of PCB Rows :

1

ECCN Code :

EAR99

JESD-609 Code :

e3

Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Insulation Resistance :

1000000000 Ω

Additional Feature :

SPOX

Factory Lead Time :

9 Weeks

HTS Code :

8536.69.40.40

Packaging :

Bulk

Product Length :

11.12 mm

Contact Type :

Male Pin

Contact Finish Thickness - Post :

-

Reliability :

COMMERCIAL

PCB Contact Pattern :

RECTANGULAR

Fastening Type :

Friction Lock

Mounting Style :

Straight

Mating Contact Pitch :

0.312 inch

Radiation Hardening :

No

Product Status :

Active

Number of Circuits :

2

Terminal Pitch :

3.96 mm

Subcategory :

Headers and Edge Type Connectors

Pitch - Mating :

0.156 (3.96mm)

Shrouding :

Shrouded - 1 Wall

Pitch :

3.9600 mm

Termination Method :

Solder

DIN Conformance :

No

Contact Finish - Post :

Tin

Base/Housing Material :

Nylon 66

Series :

KK396, 5277

Contact Resistance :

10 MΩ

Ingress Protection :

-

Termination :

Solder

Overall Contact Length :

0.687 (17.45mm)

Current Rating (Amps) :

-

Rated Current (Signal) :

7 A

Contact Shape :

Square

Reference Standard :

UL, CSA

Current Rating :

7 A

Insulation Height :

0.482 (12.25mm)

Voltage Rating :

250 V

Contact Length - Mating :

0.419 (10.65mm)

Terminal Length :

0.142 inch

Contact Finish Termination :

Tin (Sn)

Gender :

Header

Manufacturer :

Molex

Option :

GENERAL PURPOSE

Mounting Type :

Through Hole

Total Number of Contacts :

2

Mounting Option 2 :

Friction Lock

Applications :

Automotive, General Purpose, Industrial, Medical, Telecommunications

Mounting :

Through Hole

Number of Positions Loaded :

All

Min Operating Temperature :

-40 °C

Insertion Force-Max :

21.7952 N

Contact Length - Post :

0.142 (3.60mm)

Max Voltage Rating (AC) :

250 V

Max Operating Temperature :

105 °C

Row Spacing - Mating :

-

Mating Information :

MULTIPLE MATING PARTS AVAILABLE
