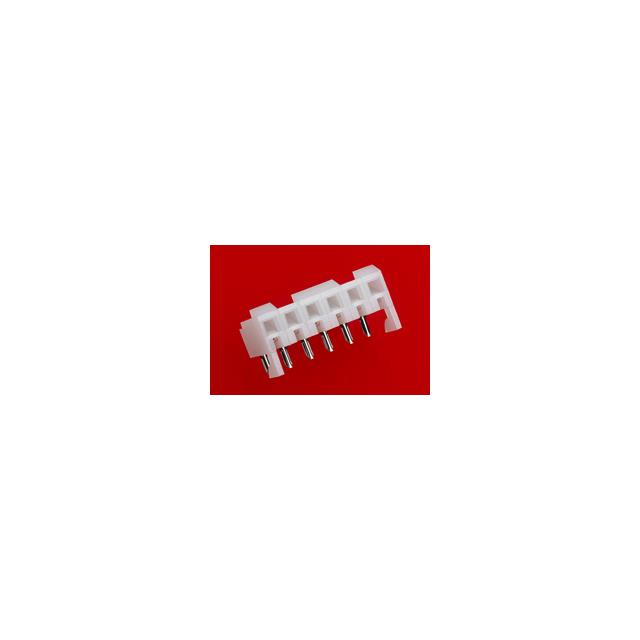

09-52-1026

Manufacturer :

Molex

Product Category :

Headers, Receptacles, Female Sockets

Packaging :

Tray

Contact Finish Termination :

Tin (Sn)

Body Breadth :

0.25 inch

Contact Resistance Max :

10(mohm)

Subcategory :

Headers and Wire Housings

Mounting Option 1 :

LOCKING

Product Category :

Headers and Wire Housings

Product :

Headers

Product Type :

Headers and Wire Housings

Product Depth (mm) :

11.4(mm)

Mixed Contacts :

No

Series :

2145

Reliability :

COMMERCIAL

Body/Shell Style :

Receptacle

Number of Contact Rows :

1

Mounting Style :

Through Hole

Contact Type :

-

Number of Rows :

1 Row

Min Operating Temperature :

0 °C

MIL Conformance :

No

Contact Arrangement :

S0P2

Voltage Rating Max :

250V

UL Flammability Code :

94V-2

Termination Method :

Solder

Mount :

Through Hole

Additional Feature :

POLARIZED

Termination Type :

Solder

Mounting Type :

BOARD

Contact Plating :

TIN OVER COPPER

Termination Style :

Solder Pin

Terminal Length :

0.145 inch

Withdrawl Force-Min :

1.7792 N

Accessory Type :

-

IEC Conformance :

No

Insulation Resistance :

1000000000 Ω

Product Length (mm) :

7.82(mm)

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Plating Thickness :

60u inch

Mounting Angle :

RIGHT ANGLE

Housing Material :

Nylon

Flammability Rating :

UL 94 V-2

Brand :

Molex

Option :

GENERAL PURPOSE

Package :

Box

Tradename :

KK

Current Rating :

5 A

Number of Circuits :

2

Voltage Rating :

250 V

Plating :

Tin

Contact Resistance :

6 mΩ

Termination :

Solder

Gender :

RCP

Filter Feature :

No

Total Number of Contacts :

2

Body Orientation :

RIGHT ANGLE

Type :

Socket Strip

Manufacturer :

Molex

Operating Temp Range :

-40C to 105C

Country of Origin :

US

Max Operating Temperature :

75 °C

Termination Post Length :

3.68 mm

Insertion Force-Max :

15.568 N

Pitch (mm) :

3.96(mm)

Current Rating (Max) :

5/Contact(A)

Pitch :

3.96 mm

Product Status :

Active

Terminal Pitch :

3.96 mm

DIN Conformance :

No

Durability :

25 Cycles

JESD-609 Code :

e3

Contact Gender :

Socket (Female)

Manufacturer Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Number of Positions :

2 Position

Contact Material :

Phosphor Bronze

Connector Type :

BOARD CONNECTOR

Body Depth :

0.45 inch

Number of Contacts :

2(POS)

Pbfree Code :

yes

HTS Code :

8536.69.40.40

ECCN Code :

EAR99

Reference Standard :

UL

Orientation :

RIGHT ANGLE

Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

RoHS :

Details

Reach Compliance Code :

Compliant

Contact Style :

SQ PIN-SKT

Housing Color :

Natural
