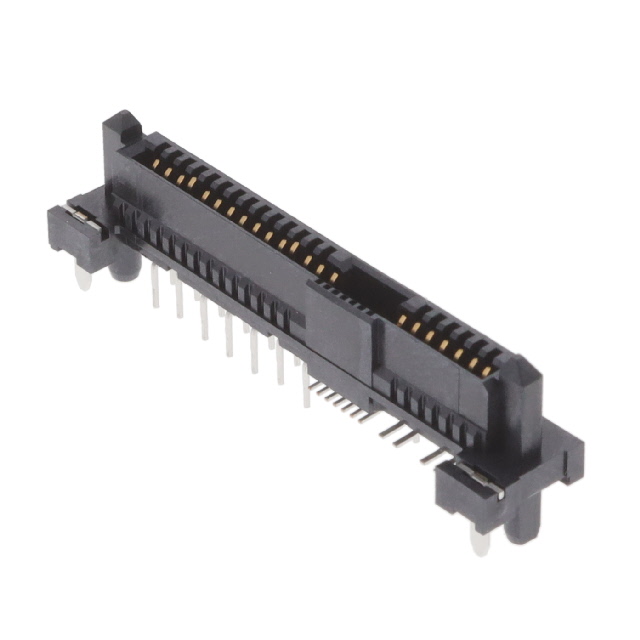

0878390017

Manufacturer :

Molex

Product Category :

Pluggable Connector Assemblies

Shell Material :

POLYETHYLENE

Contact Finish :

Gold

Contact Material :

Phosphor Bronze

Length :

42.73mm

Feature :

Board Guide, Mating Guide

Number of Ports :

1

RoHS Status :

ROHS3 Compliant

UL Flammability Code :

94V-0

Number of Rows :

2

DIN Conformance :

No

Max Operating Temperature :

55°C

Mixed Contacts :

yes

Packaging :

Tape and Reel (TR)

Empty Shell :

No

Mounting Type :

Through Hole

JESD-609 Code :

e3

Option :

GENERAL PURPOSE

Additional Feature :

POLARIZED

Connector Style :

Receptacle

Min Operating Temperature :

0°C

Factory Lead Time :

11 Weeks

Mount :

Through Hole

Pbfree Code :

yes

Contact Finish Thickness :

30.0μin 0.76μm

Housing Material :

Polymer

Termination :

Solder

IEC Conformance :

No

Radiation Hardening :

No

MIL Conformance :

No

Pitch :

800μm

Total Number of Contacts :

29

Current Rating :

1.5A

Filter Feature :

No

Series :

87839

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Depth :

8.5mm

Orientation :

Vertical

Connector Type :

SAS

Number of Positions :

29

Gender :

FEMALE
