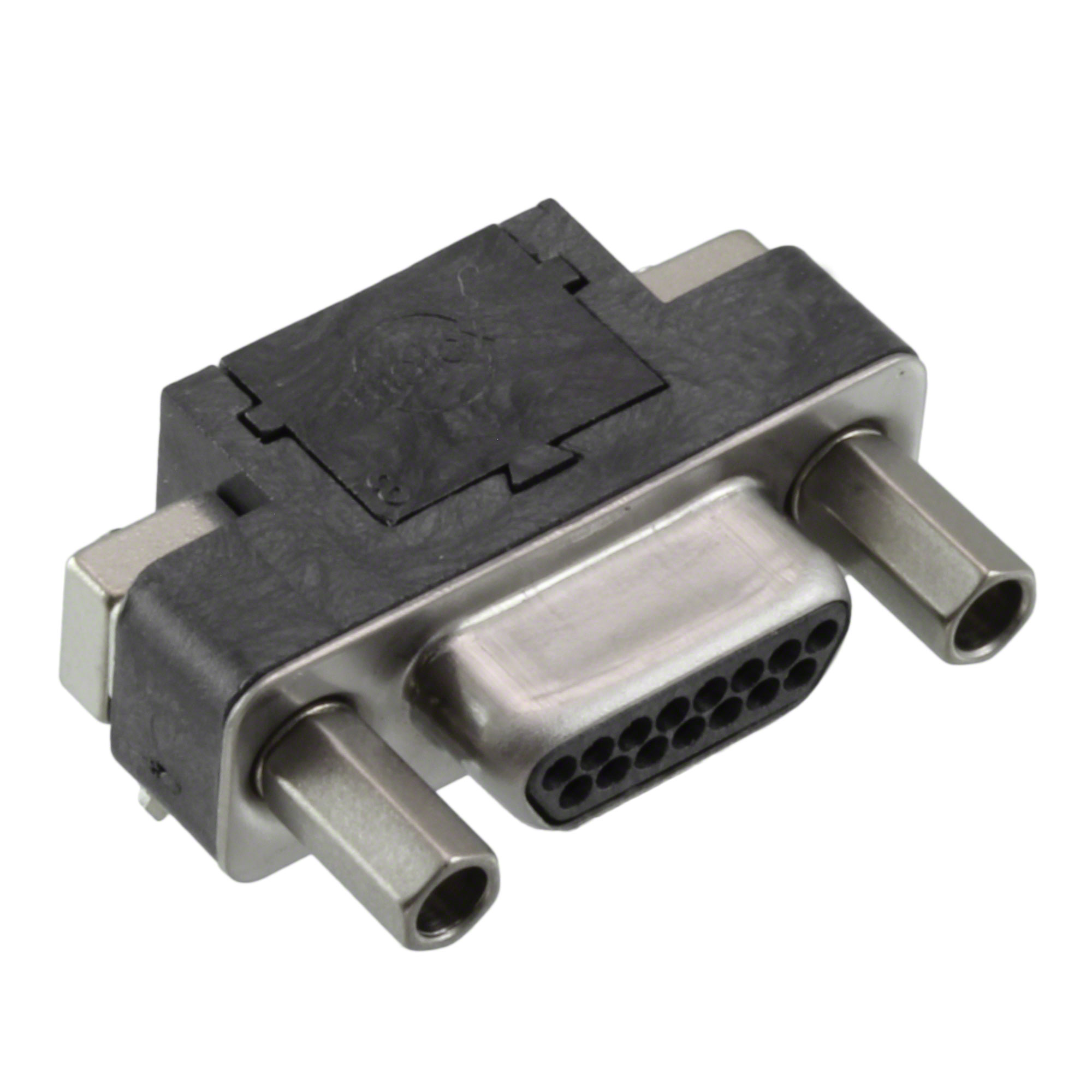

0836129020

Manufacturer :

Molex

Product Category :

D-Sub Connector Assemblies

Insulation Resistance :

5GOhm

Flange Feature :

Mating Side, Female Screwlock (2-56)

Dielectric Material :

Liquid Crystal Polymer (LCP)

Radiation Hardening :

No

Max Supply Voltage (AC) :

350V

Operating Temperature :

-55°C~125°C

Contact Type :

Signal

REACH SVHC :

Unknown

Color :

Black

Shell Size, Connector Layout :

0.050 Pitch x 0.050 Row to Row

Contact Resistance :

8mOhm

Lead Pitch :

1.27mm

Material Flammability Rating :

UL94 V-0

Gender :

Male

Length :

23.75mm

Number of Rows :

2

Current Rating :

1A

Contact Finish :

Gold

Max Operating Temperature :

125°C

Max Voltage Rating (AC) :

350V

Backset Spacing :

0.267 (6.78mm)

Number of Ports :

1

Orientation :

RIGHT ANGLE

Feature :

Board Lock, Shielded

Housing Material :

Polymer

Mount :

Panel, Through Hole

Contact Plating :

Gold

Number of Circuits :

15

Pitch :

1.27mm

Contact Material :

COPPER ALLOY

Material :

Stainless Steel

Flammability Rating :

UL94 V-0

Packaging :

Tube

Mounting Type :

Panel Mount, Through Hole, Right Angle

Number of Contacts :

15

Termination :

Solder

Height :

7.82mm

Shell Material, Finish :

Steel, Nickel Plated

Number of Positions :

15

Series :

Commercial Micro-D Series 83612

Min Operating Temperature :

-40°C

RoHS Status :

ROHS3 Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Connector Style :

D-Type, Micro-D

Contact Finish Thickness :

15.0μin 0.38μm

Connector Type :

Plug, Male Pins

Voltage - Rated DC :

350V

Voltage - Rated :

350V

Current Rating (Amps) :

1A

Number of Terminations :

15
