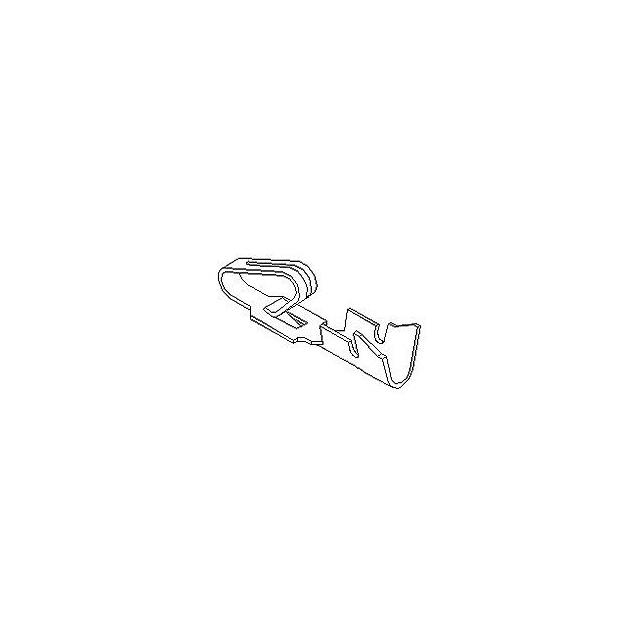

08-52-0127
Or copy the link below:
- Mfr.Part #
- 08-52-0127
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- KK 156 TERMINAL CRIMP 18-20 AWG
- Stock
- 31,852
- In Stock ：
- 31,852
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Rectangular Connector Contacts
- Pbfree Code :
- yes
- Contact Style :
- Compression
- Gender :
- Receptacle
- Brand :
- Molex
- Contact Resistance Max :
- 10(mohm)
- Series :
- 2878
- Package :
- Box
- Manufacturer :
- Molex
- Contact Type :
- Power
- Connector Type :
- Connector, PCB, Signal
- Used With :
- 2574, 2139
- Termination :
- Crimp
- Cable Entry-Max :
- 0.11 inch
- Product Status :
- Active
- Connector Support Type :
- CONNECTOR ACCESSORY
- Contact Plating :
- Tin
- Current Rating :
- 4.5 A
- Shielding :
- Unshielded
- Depth :
- 3.3 mm
- Mount :
- CABLE
- Packaging :
- Bag
- Wire Gauge (Min) :
- 20 AWG
- IEC Conformance :
- No
- Wire Size :
- 20 to 18, 20 AWG
- Mounting :
- Cable Mount
- Mounting Style :
- CABLE
- Housing Material :
- -
- Voltage Rating :
- 250 V
- Max Operating Temperature :
- 75 °C
- Product Depth (mm) :
- 3.3(mm)
- Factory Lead Time :
- 13 Weeks
- Contact Gender :
- SKT
- Assembly Item Name :
- Contact
- Body Orientation :
- Straight
- Additional Feature :
- CONTACT FINISH: TIN
- Min Operating Temperature :
- 0 °C
- Contact Material :
- Phosphor Bronze
- Type :
- Terminals
- ECCN Code :
- EAR99
- Termination Style :
- Crimp
- Operating Temperature :
- 0 to 75 °C
- Country of Origin :
- US
- Material :
- Phosphor Bronze
- Radiation Hardening :
- No
- Shielded :
- No
- Maximum Operating Temperature :
- + 105 C
- Max Current Rating :
- 7 A
- Finish Thickness :
- 100
- Contact Design :
- LOOSE
- Terminal Length :
- 0.213 inch
- Reach Compliance Code :
- Compliant
- Tradename :
- KK
- Housing Color :
- -
- HTS Code :
- 8536.90.40.00
- Product Type :
- Headers and Wire Housings
- Product Length :
- 13.69 mm
- Length :
- 13.69 mm
- DIN Conformance :
- No
- Subcategory :
- Headers and Wire Housings
- Termination Method :
- Crimp
- MIL Conformance :
- No
- Minimum Operating Temperature :
- - 40 C
- Current Rating (Max) :
- 7(A)
- Product Height (mm) :
- 4.79(mm)
- Product Length (mm) :
- 13.69(mm)
- Pitch :
- 3.96 mm
- Product :
- Contacts
- Plating :
- Tin
- Terminal Type :
- Crimp
- Contact Resistance :
- 10 MΩ
- RoHS :
- Compliant
- Product Category :
- Headers and Wire Housings
- Orientation :
- Straight
- Wire Gauge :
- 18-20(AWG)
- Wire Gauge (Max) :
- 18 AWG
- Height :
- 4.79 mm
- Datasheets
- 08-52-0127
