0732160100
Or copy the link below:
- Mfr.Part #
- 0732160100
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN TNC JACK STR 50 OHM CRIMP
- Stock
- 32,618
- In Stock ：
- 32,618
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Coaxial Connector (RF) Assemblies
- Contact Finish - Mating :
- NOT SPECIFIED
- Mating Cycles :
- 500
- ECCN Code :
- EAR99
- Number of Ports :
- 1
- Cable Group :
- RG-58, 141, 303
- Body Material :
- Brass
- Reliability :
- COMMERCIAL
- Connector Type :
- Jack, Female Socket
- Factory Lead Time :
- 11 Weeks
- Center Contact Plating :
- Gold
- Dielectric Material :
- Polytetrafluoroethylene (PTFE)
- IEC Conformance :
- No
- RoHS Status :
- ROHS3 Compliant
- Fastening Type :
- Threaded
- Series :
- 73216
- Panel Mount :
- yes
- Contact Termination :
- Crimp or Solder
- Option :
- GENERAL PURPOSE
- Operating Temperature :
- -65°C~165°C
- Filter Feature :
- No
- Voltage - Rated :
- 500V
- Center Contact Material :
- BERYLLIUM COPPER
- Shield Termination :
- Crimp
- Contact Style :
- COAX
- Body Finish :
- Nickel
- MIL Conformance :
- No
- Connector Style :
- TNC
- Mounting Type :
- Panel Mount
- Mounting Option 1 :
- LOCKING
- Includes :

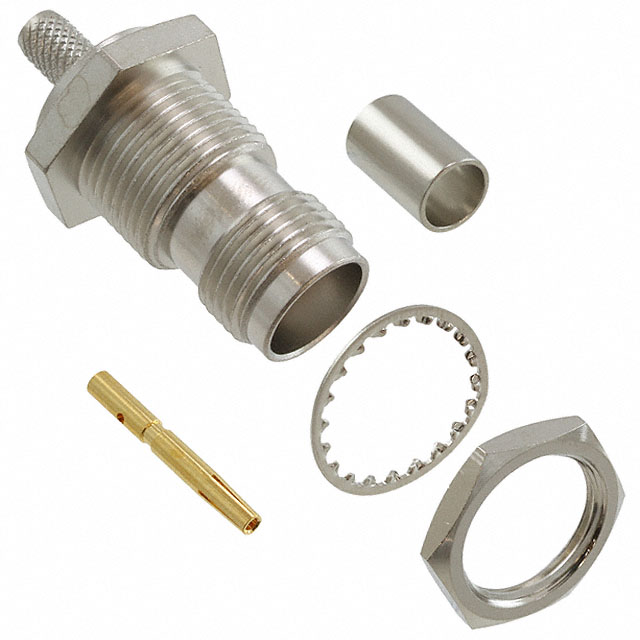

- 5 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut
- Impedance :
- 50Ohm
- DIN Conformance :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Color :
- Silver
- Packaging :
- Bulk
- Mounting Feature :
- Bulkhead - Front Side Nut
- Pbfree Code :
- yes
- Total Number of Contacts :
- 1
- Datasheets
- 0732160100
Jack, Female Socket Threaded 50Ohm Bulk TNC Crimp or Solder 1 Port Polytetrafluoroethylene (PTFE) -65°C~165°C
0732160100 Overview
A Jack, Female Socket package is included with it.Panel Mount indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the 73216 Series.With 1 ports, it is capable of managing a wide range of tasks.Operating temperature is set to -65°C~165°C.
0732160100 Features
73216 series
0732160100 Applications
There are a lot of Molex
0732160100 Coaxial Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
