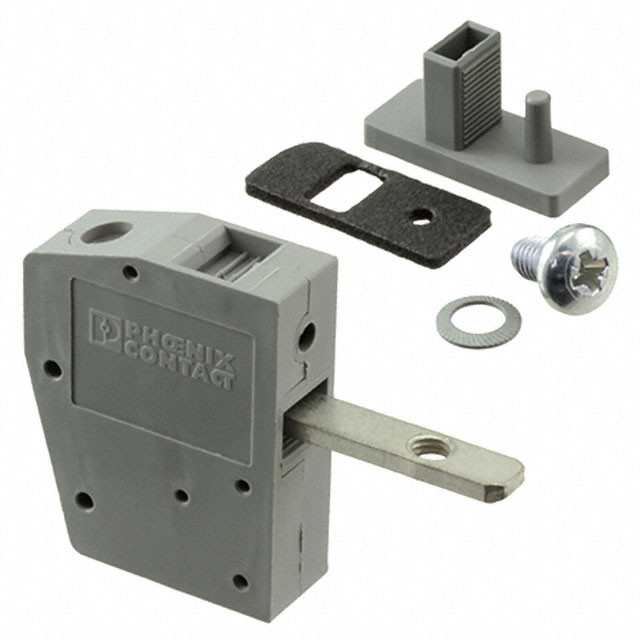

0717063

Manufacturer :

Phoenix Contact

Product Category :

Panel Mount

Wire Gauge :

4-20 AWG

Flammability Rating :

UL94 V-0

Color :

Gray

Orientation :

RIGHT ANGLE

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Current Rating :

76A

Connector Type :

Screw

Wire Gauge (Min) :

4 AWG

Voltage :

600V

Pitch :

12.1mm

Front Panel Wire Connection :

Bolt/Screw Clamp - Wire Entry Angled to Panel

ECCN Code :

EAR99

Wire Gauge (Max) :

20 AWG

Series :

CLIPLINE HDFK

HTS Code :

8536.69.40.40

Width :

0.476 12.10mm

Length :

48.9mm

Current :

85A

Number of Contacts :

2

Mount :

Wall

RoHS Status :

RoHS Compliant

Max Current Rating :

101A

Panel Thickness :

0.039 ~ 0.236 1.0 ~ 6.0mm

Voltage - Rated :

500V

Gender :

FEMALE

Moisture Sensitivity Level (MSL) :

Not Applicable

Factory Lead Time :

8 Weeks

Number of Positions Per Level :

1

Reach Compliance Code :

not_compliant

Panel Mount Type :

2 Piece

Rear Panel Wire Connection :

Screw Terminal
