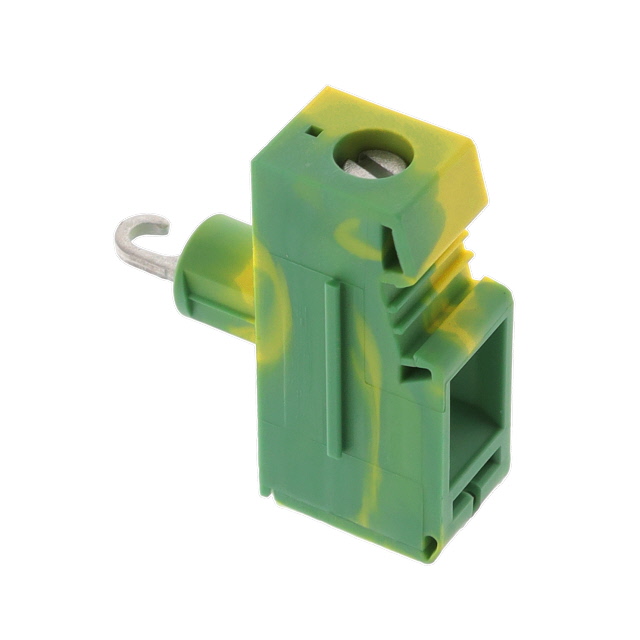

0711069

Manufacturer :

Phoenix Contact

Product Category :

Panel Mount

Panel Mount Type :

2 Piece

Panel Thickness :

0.039 ~ 0.177 1.0 ~ 4.5mm

Rear Panel Wire Connection :

PCB Pins - Straight

Termination :

Screw

Flammability Rating :

UL94 V-2

Pbfree Code :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Contacts :

2

Weight :

7.800003g

Connector Type :

Screw, Socket

Wire Gauge (Max) :

26 AWG

Series :

CLIPLINE VDFK

Safety Approval :

CSA

HTS Code :

8536.69.40.40

Gender :

FEMALE

Current Rating :

57A

Depth :

10mm

Mount :

Through Hole

Front Panel Wire Connection :

Bolt/Screw Clamp - Wire Entry 90° to Panel

Housing Material :

Polyamide

Color :

Green, Yellow

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Max Current Rating :

57A

Width :

0.394 10.00mm

Wire Gauge :

8-26 AWG

ECCN Code :

EAR99

Factory Lead Time :

4 Weeks

Voltage - Rated :

500V

Length :

10mm

Orientation :

RIGHT ANGLE

RoHS Status :

RoHS Compliant

Wire Gauge (Min) :

8 AWG

Max Supply Voltage :

500V

Number of Positions Per Level :

1

Height :

30.2mm
