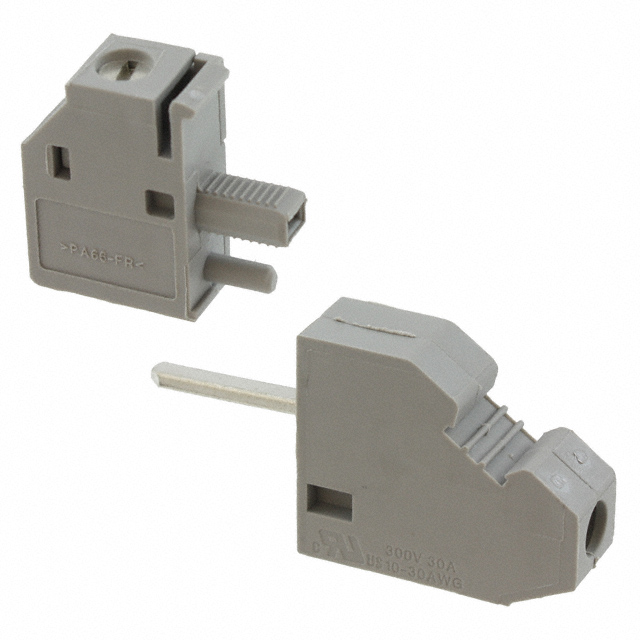

0709026

Manufacturer :

Phoenix Contact

Product Category :

Panel Mount

Panel Thickness :

0.039 ~ 0.157 1.0 ~ 4.0mm

Current :

30A

Flammability Rating :

UL94 V-0

Approval Agency :

CB, CSA, KEMA, cULus

Number of Positions Per Level :

1

Lead Free :

Lead Free

Pbfree Code :

yes

Max Current Rating :

41A

Reach Compliance Code :

not_compliant

Current Rating :

32A

Housing Color :

Grey

Wire Gauge (Max) :

30 AWG

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Color :

Gray

Series :

CLIPLINE HDFKV

Connector Type :

Screw

Factory Lead Time :

7 Weeks

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

RoHS Status :

RoHS Compliant

HTS Code :

8536.90.40.00

Rear Panel Wire Connection :

Bolt/Screw Clamp - Wire Entry Parallel to Panel

Voltage - Rated :

400V

Voltage :

300V

Front Panel Wire Connection :

Bolt/Screw Clamp - Wire Entry 90° to Panel

ECCN Code :

EAR99

Safety Approval :

UL; CSA

Mount :

Wall

Number of Ways :

2

Panel Mount Type :

2 Piece

Weight :

8.804001g

Packaging :

Bulk

Wire Gauge :

10-30 AWG

Width :

0.319 8.10mm

Number of Rows :

1

Number of Contacts :

2

Wire Gauge (Min) :

10 AWG

Number of Decks :

1

Housing Material :

Nylon
