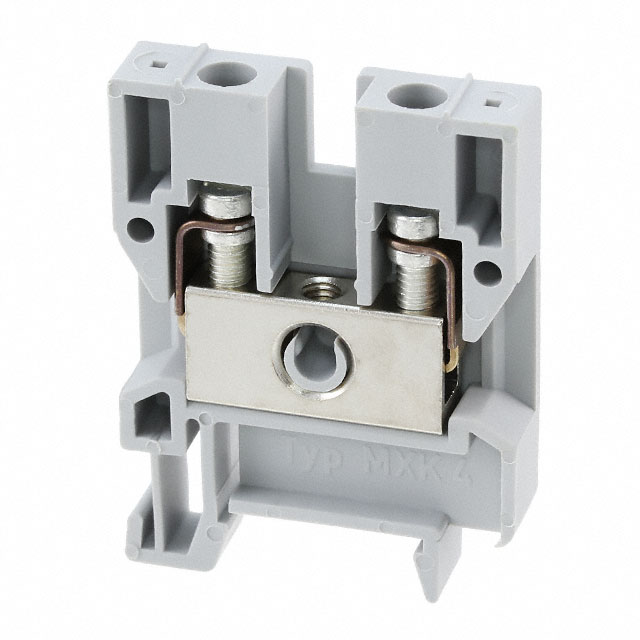

0561002

Manufacturer :

Phoenix Contact

Product Category :

Din Rail, Channel

Mount :

Through Hole

Color :

Gray

Wire Gauge (Min) :

24 AWG

Series :

CLIPLINE MXK

Voltage - IEC :

690V

Wire/Cable Gauge :

12 AWG

Number of Rows :

2

Length :

28mm

Wire Gauge (Max) :

24 AWG

Number of Decks :

1

Current Rating :

32A

Type :

Feed Through

Width :

6.2mm

Number of Positions :

2

Height :

38mm

ECCN Code :

EAR99

Voltage - Rated :

690V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

HTS Code :

8536.69.40.40

Material Flammability Rating :

UL94 V-0

RoHS Status :

RoHS Compliant

Pbfree Code :

yes

Number of Levels :

1

Stripping Length :

8mm

Wire Gauge or Range - AWG :

12-24 AWG

Reach Compliance Code :

Unknown

Feature :

Explosion Proof, Harsh Environment

Termination Style :

Screw

Wire Gauge or Range - mm² :

0.2-4mm2

Factory Lead Time :

4 Weeks

Flammability Rating :

UL94 V-0

Material - Insulation :

Polyamide (PA), Nylon
