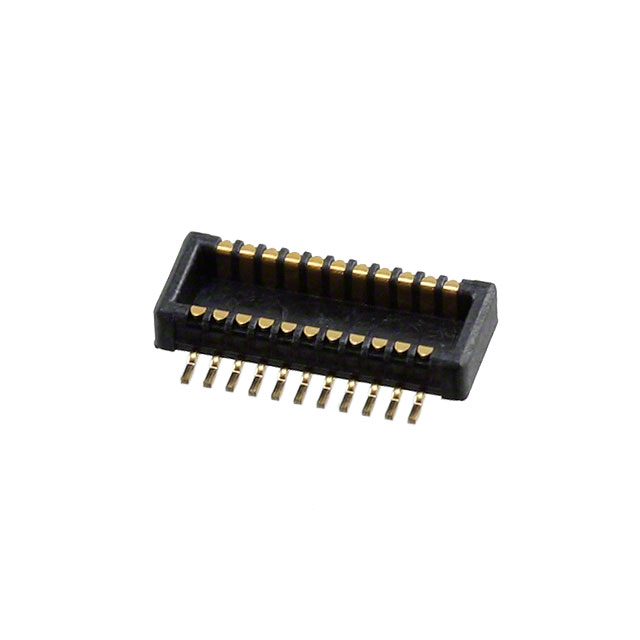

0555600227
Or copy the link below:
- Mfr.Part #
- 0555600227
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG 22POS SMD GOLD
- Stock
- 4,720
- In Stock ：
- 4,720
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Mounting Type :
- Surface Mount
- Connector Type :
- Plug, Outer Shroud Contacts
- Contact Finish Thickness :
- 10.0μin 0.25μm
- Pbfree Code :
- yes
- Stack Height (Mating) :
- 1.5mm
- Plating Thickness :
- 10μin
- Number of Positions :
- 22
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Series :
- SlimStack 55560
- Rated Current (Signal) :
- 0.5A
- Filter Feature :
- No
- JESD-609 Code :
- e4
- Contact Finish :
- Gold
- Number of Rows :
- 2
- RoHS Status :
- ROHS3 Compliant
- Mixed Contacts :
- No
- Number of Conductors :
- ONE
- Packaging :
- Bulk
- Additional Feature :
- SHROUDED
- Option :
- GENERAL PURPOSE
- Factory Lead Time :
- 9 Weeks
- Height Above Board :
- 0.045 1.14mm
- Total Number of Contacts :
- 22
- Operating Temperature (Max) :
- 85°C
- Contact Gender :
- Male
- Pitch :
- 0.020 0.50mm
- Datasheets
- 0555600227
0555600227 Documents
Plug, Outer Shroud Contacts Bulk 2 Rows 0.020 0.50mm Surface Mount 22 Positions SlimStack 55560 Gold
0555600227 Overview
Packaging is in the form of Plug, Outer Shroud Contacts.An orange Bulk case is used to package the product.This device has a Surface Mount mounting type.Specifically, it is one of the products in the SlimStack 55560 Series.Other features include SHROUDED, to name just a few.
0555600227 Features
SlimStack 55560 series
Package / Case: Bulk
Mounting Type:Surface Mount
Additional Feature: SHROUDED
0555600227 Applications
There are a lot of Molex
0555600227 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
