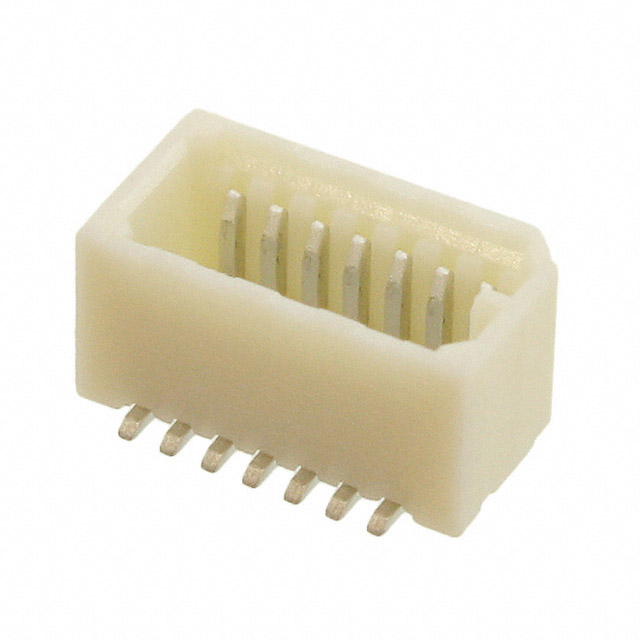

0533071471
Or copy the link below:
- Mfr.Part #
- 0533071471
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR 14POS SMD TIN
- Stock
- 19,443
- In Stock ：
- 19,443
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Additional Feature :
- SHROUDED
- IEC Conformance :
- No
- Option :
- GENERAL PURPOSE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- DIN Conformance :
- No
- Pbfree Code :
- yes
- Mixed Contacts :
- No
- Stack Height (Mating) :
- 4.5mm 5.5mm
- Contact Finish :
- Tin
- Factory Lead Time :
- 10 Weeks
- Number of Rows :
- 2
- Contact Finish Thickness :
- 120.0μin 3.05μm
- Filter Feature :
- No
- Number of Positions :
- 14
- Total Number of Contacts :
- 14
- MIL Conformance :
- No
- Mounting Type :
- Surface Mount
- JESD-609 Code :
- e3
- Height Above Board :
- 0.144 3.66mm
- Pitch :
- 0.031 0.80mm
- Connector Type :
- Header, Outer Shroud Contacts
- Series :
- SlimStack 53307
- Packaging :
- Tape and Reel (TR)
- RoHS Status :
- ROHS3 Compliant
- Contact Material :
- Phosphor Bronze
- Contact Gender :
- Male
- Datasheets
- 0533071471
0533071471 Documents
Header, Outer Shroud Contacts Tape & Reel (TR) 2 Rows 0.031 0.80mm Surface Mount 14 Positions SlimStack 53307 Tin PHOSPHOR BRONZE
0533071471 Overview
It comes in Header, Outer Shroud Contacts packaging.In order to package the product, a Tape & Reel (TR) case is used.The device's mounting type is Surface Mount.It belongs to the SlimStack 53307 Series of products.In addition, there are other features such as SHROUDED, to mention only a few.
0533071471 Features
SlimStack 53307 series
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount
Additional Feature: SHROUDED
0533071471 Applications
There are a lot of Molex
0533071471 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
