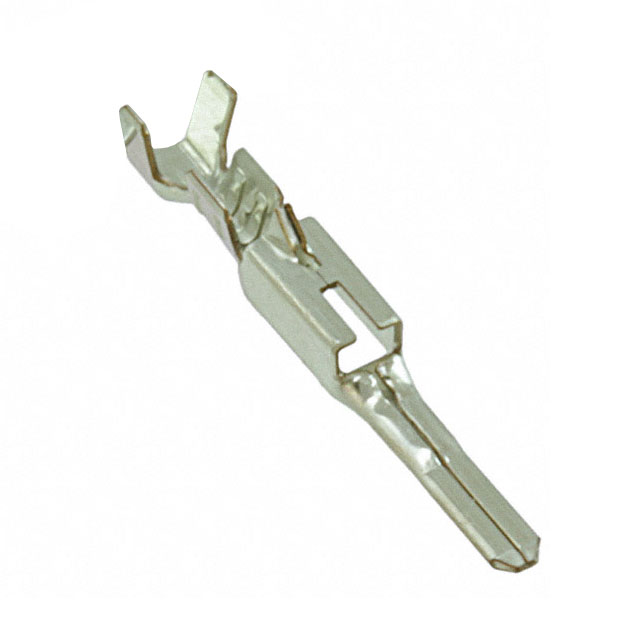

0503988100
Or copy the link below:
- Mfr.Part #
- 0503988100
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN PIN 22-28AWG CRIMP TIN
- Stock
- 36,181
- In Stock ：
- 36,181
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Rectangular Connector Contacts
- Contact Finish Thickness :
- 35.4μin 0.90μm
- Contact Gender :
- Male
- RoHS Status :
- ROHS3 Compliant
- Height :
- 2.45mm
- Contact Finish :
- Tin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Cable Entry-Max :
- 0.071 inch
- MIL Conformance :
- No
- Wire Gauge :
- 22-28 AWG
- Shielding :
- Unshielded
- Assembly Item Name :
- Contact
- Packaging :
- Bulk
- Cable Entry-Min :
- 0.045 inch
- Mount :
- CABLE
- Pbfree Code :
- yes
- Pin or Socket :
- Pin
- Orientation :
- Straight
- Connector Type :
- Connector, PCB, Signal
- Depth :
- 2.54mm
- IEC Conformance :
- No
- Used With :
- 51112
- Length :
- 15mm
- HTS Code :
- 8536.90.40.00
- Series :
- 50398
- Wire/Cable Gauge :
- 28 AWG
- ECCN Code :
- EAR99
- Wire Size (Min) :
- 22 AWG
- Halogen Free :
- Low Halogen
- DIN Conformance :
- No
- Contact Termination :
- Crimp
- Contact Style :
- Compression
- Connector Support Type :
- CONNECTOR ACCESSORY
- Factory Lead Time :
- 31 Weeks
- Contact Material :
- Bronze
- Datasheets
- 0503988100
