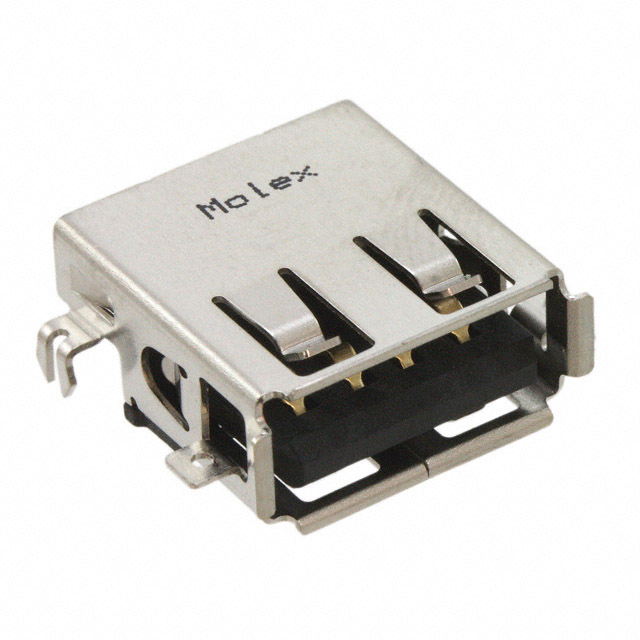

0482580001

Manufacturer :

Molex

Product Category :

USB, DVI, HDMI Connector Assemblies

Termination :

Solder

Gender :

Receptacle

Feature :

Board Lock, Solder Retention

JESD-609 Code :

e3

Empty Shell :

No

Voltage - Rated :

250VAC

RoHS Status :

ROHS3 Compliant

Shell/Shielding Material :

Brass

Mixed Contacts :

No

Number of Ports :

1

Specifications :

USB 2.0

Contact Finish :

Gold

Packaging :

Tape and Reel (TR)

Pbfree Code :

yes

Number of Contacts :

4

Contact Material :

NOT SPECIFIED

Option :

GENERAL PURPOSE

Insulation Color :

Black

Series :

48258

Material Flammability Rating :

UL94 V-0

IEC Conformance :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Mounting Type :

Board Edge, Cutout; Through Hole, Right Angle

Current Rating (Amps) :

1.5A

Connector Type :

USB-A (USB TYPE-A)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Shielding :

Shielded

Mounting Feature :

Horizontal, Mid Mount

MIL Conformance :

No

Filter Feature :

No

Factory Lead Time :

13 Weeks

DIN Conformance :

No

Operating Temperature :

-25°C~85°C

ECCN Code :

EAR99
