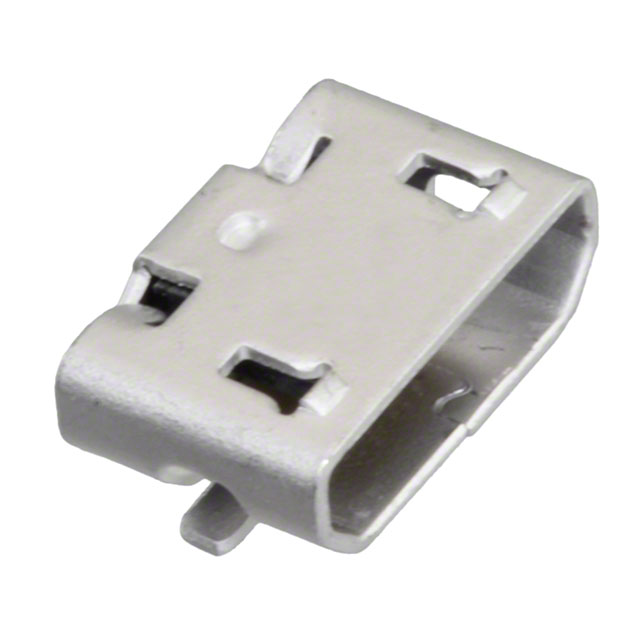

0473461001

Manufacturer :

Molex

Product Category :

USB, DVI, HDMI Connector Assemblies

Contact Finish :

Gold

Contact Resistance :

30mOhm

Reference Standard :

UL

Number of Ports :

1

Insulation Color :

Black

Mixed Contacts :

yes

Insulation Material :

Thermoplastic

Feature :

Pick and Place, Solder Retention

Mounting Type :

Surface Mount, Right Angle

Current Rating (Amps) :

1A 1.8A

Pbfree Code :

yes

IEC Conformance :

No

Operating Temperature :

-30°C~85°C

Filter Feature :

No

Shell Material :

POLYETHYLENE

Material Flammability Rating :

UL94 V-0

Voltage - Rated :

30VAC

Mating Cycles :

10000

RoHS Status :

ROHS3 Compliant

Mounting Option 1 :

LOCKING

Shell/Shielding Material :

Steel, Stainless

Number of Contacts :

5

Shielding :

Shielded

Reliability :

COMMERCIAL

Empty Shell :

No

DIN Conformance :

No

Number of Conductors :

ONE

Packaging :

Tape and Reel (TR)

ECCN Code :

EAR99

Contact Style :

USB, SER B SQ

Series :

47346

Mounting Feature :

Horizontal

Factory Lead Time :

18 Weeks

Gender :

Receptacle

Connector Type :

USB - micro B

Option :

GENERAL PURPOSE

JESD-609 Code :

e4

UL Flammability Code :

94V-0

Contact Material :

NOT SPECIFIED

Specifications :

USB 2.0

Termination :

Solder

MIL Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
