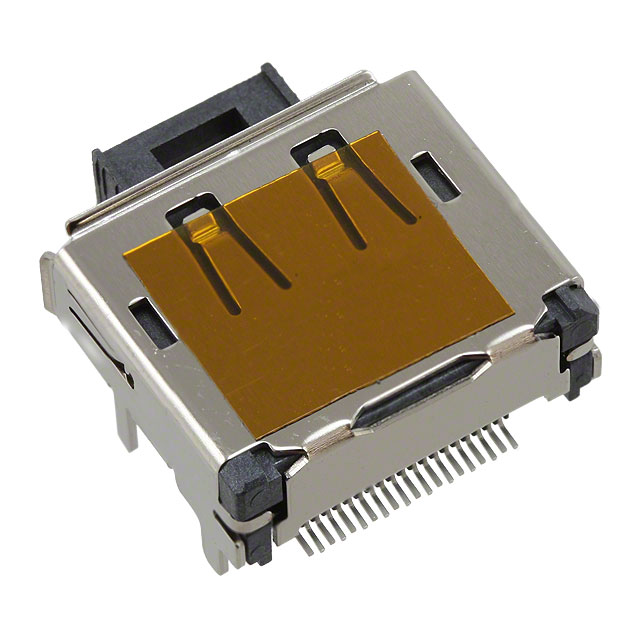

0472720024

Manufacturer :

Molex

Product Category :

USB, DVI, HDMI Connector Assemblies

IEC Conformance :

No

Gender :

Receptacle

Series :

47272

Empty Shell :

No

ECCN Code :

EAR99

Shell/Shielding Material :

Steel, Stainless

Pbfree Code :

yes

Mixed Contacts :

No

Contact Material :

COPPER ALLOY

JESD-609 Code :

e4

Mating Cycles :

10000

Termination :

Solder

Feature :

Board Guide, Cover, Latch Lock

UL Flammability Code :

94V-0

Operating Temperature :

-20°C~85°C

Contact Finish :

Gold

Packaging :

Cut Tape (CT)

RoHS Status :

ROHS3 Compliant

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

MIL Conformance :

No

Mounting Feature :

Horizontal

Shell Material :

POLYETHYLENE

Mounting Type :

Surface Mount, Right Angle; Through Hole

Number of Ports :

1

DIN Conformance :

No

Material Flammability Rating :

UL94 V-0

Additional Feature :

POLARIZED

Number of Contacts :

20

Filter Feature :

No

Current Rating (Amps) :

0.5A

Voltage - Rated :

40VAC

Factory Lead Time :

14 Weeks

Shielding :

Shielded

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

HTS Code :

8536.69.40.30

Option :

GENERAL PURPOSE

Connector Type :

DisplayPort

Insulation Color :

Black
