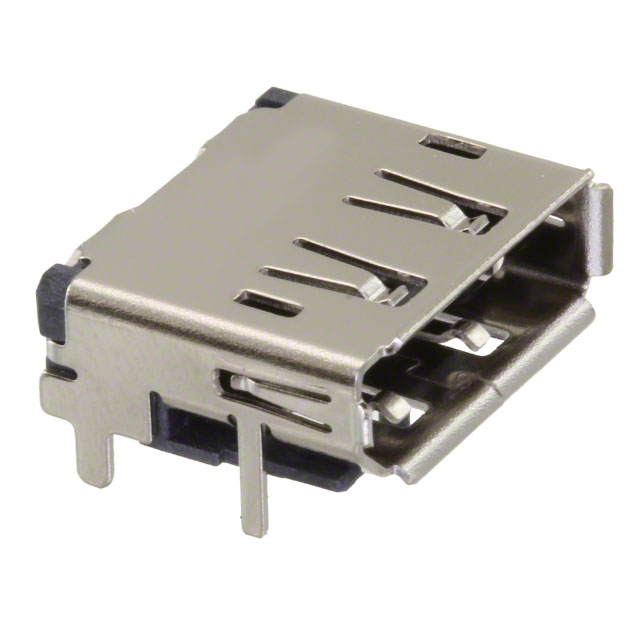

0472720001

Manufacturer :

Molex

Product Category :

USB, DVI, HDMI Connector Assemblies

Feature :

Board Guide, Latch Lock

Gender :

Receptacle

HTS Code :

8536.69.40.30

Pbfree Code :

yes

Current Rating (Amps) :

0.5A

MIL Conformance :

No

Series :

47272

Connector Type :

DisplayPort

Number of Contacts :

20

Shielding :

Shielded

Mounting Type :

Surface Mount, Right Angle; Through Hole

Voltage - Rated :

40VAC

Material Flammability Rating :

UL94 V-0

Insulation Color :

Black

Termination :

Solder

Additional Feature :

POLARIZED

ECCN Code :

EAR99

Packaging :

Cut Tape (CT)

Mating Cycles :

10000

Shell Material :

POLYETHYLENE

Empty Shell :

No

Operating Temperature :

-20°C~85°C

DIN Conformance :

No

UL Flammability Code :

94V-0

Mixed Contacts :

No

IEC Conformance :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Number of Ports :

1

RoHS Status :

ROHS3 Compliant

Contact Finish :

Gold

Shell/Shielding Material :

Steel, Stainless

Filter Feature :

No

Contact Material :

NOT SPECIFIED

Option :

GENERAL PURPOSE

Factory Lead Time :

18 Weeks

Mounting Feature :

Horizontal

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
