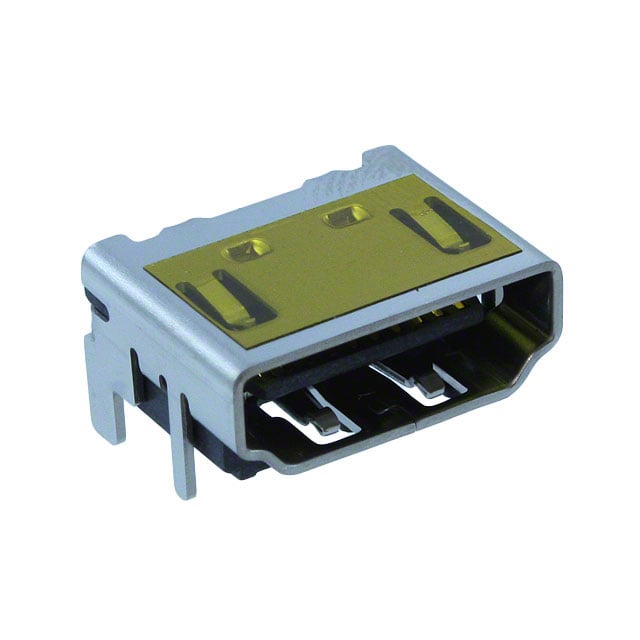

0471511041

Manufacturer :

Molex

Product Category :

USB, DVI, HDMI Connector Assemblies

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Shell Finish :

Nickel

DIN Conformance :

No

Series :

47151

Option :

GENERAL PURPOSE

Voltage - Rated :

40VDC

Mount :

Horizontal, Surface Mount

UL Flammability Code :

94V-0

ECCN Code :

EAR99

Number of Rows :

2

Mounting Type :

Surface Mount, Right Angle; Through Hole

Depth :

12.15mm

Current Rating :

500mA

RoHS Status :

ROHS3 Compliant

Operating Temperature :

-20°C~85°C

Max Voltage Rating (DC) :

40V

Feature :

Detent Lock

IEC Conformance :

No

Current Rating (Amps) :

0.5ADC

Connector Type :

HDMI

Contact Plating :

Gold, Tin

Pitch :

500μm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Ports :

1

Mounting Feature :

Horizontal

Shielding :

Shielded

Pbfree Code :

yes

Housing Material :

Thermoplastic

Mixed Contacts :

No

MIL Conformance :

No

Number of Contacts :

19

Length :

15mm

Orientation :

RIGHT ANGLE

JESD-609 Code :

e6

Packaging :

Tape and Reel (TR)

Filter Feature :

No

Shell/Shielding Material :

COPPER ALLOY

Empty Shell :

No

Contact Finish :

Gold

Insulation Color :

Black

Termination :

Solder

HTS Code :

8536.69.40.30

Gender :

Receptacle
