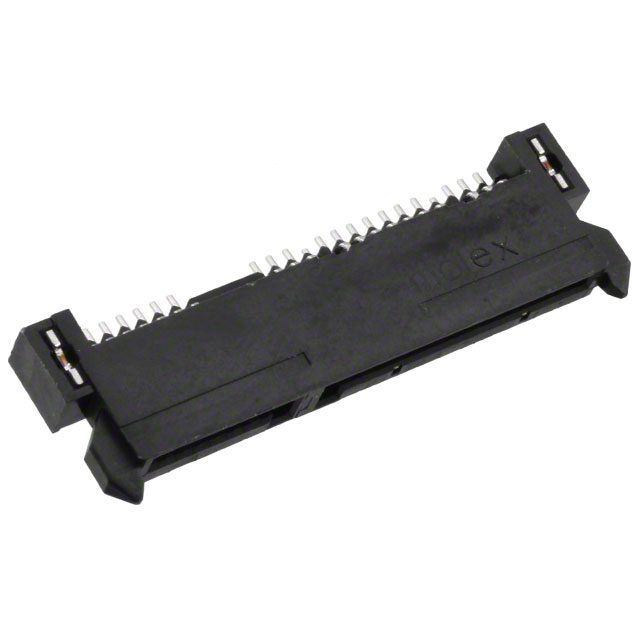

0470182000
Or copy the link below:
- Mfr.Part #
- 0470182000
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN SATA RCPT 22POS SLD R/A SMD
- Stock
- 1,152
- In Stock ：
- 1,152
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Pluggable Connector Assemblies
- Series :
- 47018
- Voltage - Rated DC :
- 15V
- Number of Ports :
- 1
- Mounting Type :
- Surface Mount, Right Angle
- Lead Pitch :
- 1.27mm
- Min Operating Temperature :
- -35°C
- RoHS Status :
- ROHS3 Compliant
- Max Operating Temperature :
- 85°C
- Mount :
- Surface Mount
- Number of Contacts :
- 22
- Number of Positions :
- 22
- Connector Type :
- SATA
- Termination :
- Solder
- Feature :
- Board Lock
- Contact Finish :
- Gold
- Number of Terminations :
- 22
- Orientation :
- RIGHT ANGLE
- Number of Circuits :
- 5
- Depth :
- 11.17mm
- Contact Finish Thickness :
- Flash
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Material :
- Thermoplastic
- Current Rating :
- 1A
- Contact Plating :
- Gold
- Number of Rows :
- 1
- Connector Style :
- Receptacle
- Length :
- 40.43mm
- Gender :
- Receptacle
- Max Voltage Rating (DC) :
- 15V
- Contact Material :
- Copper
- Radiation Hardening :
- No
- Factory Lead Time :
- 15 Weeks
- Pitch :
- 1.27mm
- Packaging :
- Tray
- Datasheets
- 0470182000
