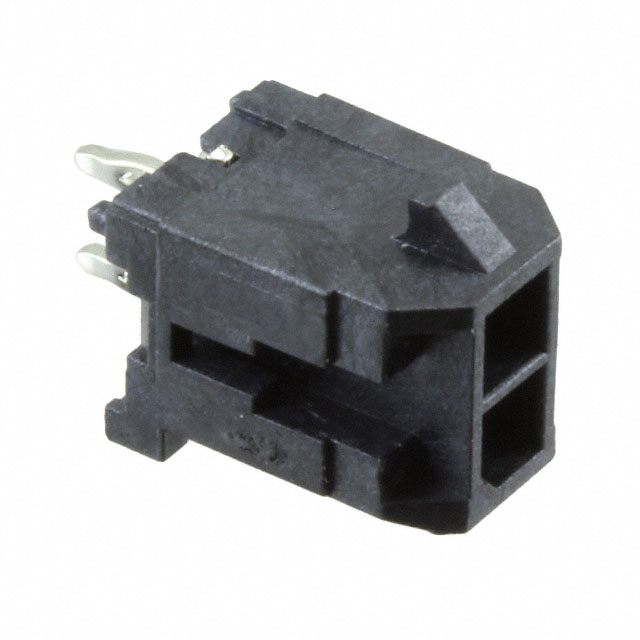

0449140201

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Feature :

Board Guide

Max Operating Temperature :

105°C

Glow Wire Compliant :

Compliant

Material Flammability Rating :

UL94 V-0

Filter Feature :

No

Voltage - Rated :

250V

Halogen Free :

Low Halogen

JESD-609 Code :

e3

Series :

Micro-Fit 3.0 CPI 44914

RoHS Status :

ROHS3 Compliant

Reach Compliance Code :

Unknown

Orientation :

Vertical, Right Angle

Insulation Height :

0.390 9.91mm

Mount :

Through Hole

Applications :

General Purpose, Medical, Military, Telecommunications

Number of Contacts :

2

Contact Shape :

Square

Connector Type :

Header

Fastening Type :

Locking Ramp

Flammability Rating :

UL94 V-0

UL Flammability Code :

94V-0

Insulation Color :

Black

Current Rating :

5A

Contact Finish - Mating :

Tin

Voltage - Rated DC :

250V

Pitch :

3mm

MIL Conformance :

No

Contact Length - Post :

0.125 3.18mm

Housing Material :

Thermoplastic

Pbfree Code :

yes

Termination :

Press-Fit, Solder

Contact Type :

Male Pin

Row Spacing - Mating :

0.118 (3.00mm)

REACH SVHC :

No SVHC

Style :

Board to Board or Cable

Mixed Contacts :

No

Min Operating Temperature :

-40°C

Insulation Material :

Liquid Crystal Polymer (LCP), Glass Filled

Lead Pitch :

3mm

DIN Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Finish Thickness - Mating :

200.0μin 5.08μm

Contact Material :

Modified Tin/Brass Alloy

Factory Lead Time :

8 Weeks

IEC Conformance :

No

Shrouding :

Shrouded - 4 Wall

Number of Rows :

2

Mounting Type :

Through Hole

Number of Positions Loaded :

All

Packaging :

Tray
