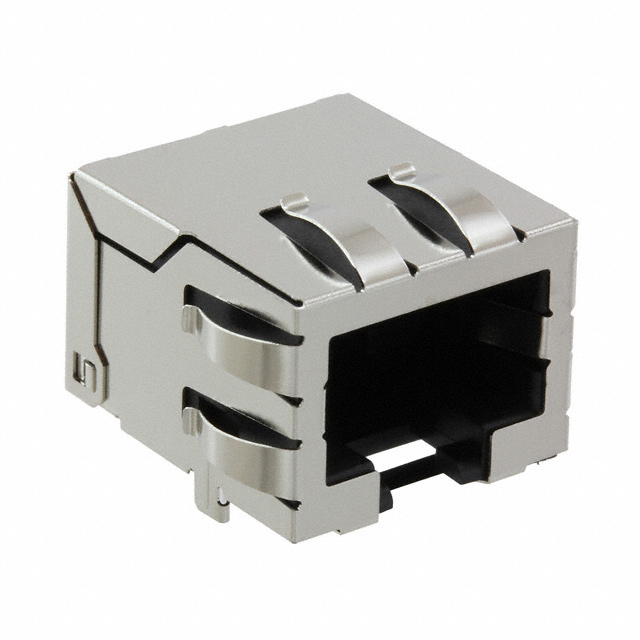

0442820001

Manufacturer :

Molex

Product Category :

Modular Connector Jacks

Depth :

17.6mm

Shielding :

Shielded, EMI Finger

Contact Finish :

Gold

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Pbfree Code :

yes

Housing Color :

Black

Housing Material :

Polyamide (PA), Nylon, Glass Filled

Feature :

Board Guide, Solder Retention

RoHS Status :

ROHS3 Compliant

Termination :

Solder

Series :

44282

LED Color :

Does Not Contain LED

Contact Gender :

FEMALE

Tab Direction :

Down

Option :

GENERAL PURPOSE

Connector Type :

JACK

Additional Feature :

LOW PROFILE, SHIELDED

IEC Conformance :

No

Shell Material :

POLYETHYLENE

MIL Conformance :

No

UL Flammability Code :

94V-0

Filter Feature :

No

Factory Lead Time :

11 Weeks

Number of Positions/Contacts :

8p8c (RJ45, Ethernet)

Number of Circuits :

40

Mounting Type :

Surface Mount

Packaging :

Tape and Reel (TR)

Radiation Hardening :

No

Mixed Contacts :

No

Number of Positions Loaded :

8

Empty Shell :

No

Contact Finish Thickness :

50.0μin 1.27μm

Total Number of Contacts :

8

Current Rating :

12A

Pitch :

1.27mm

Orientation :

90° Angle (Right)

Contact Material :

Phosphor Bronze

Number of Ports :

1

Length :

18.55mm

Mount :

Surface Mount

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Operating Temperature :

-40°C~70°C

Ratings :

Cat3

DIN Conformance :

No
