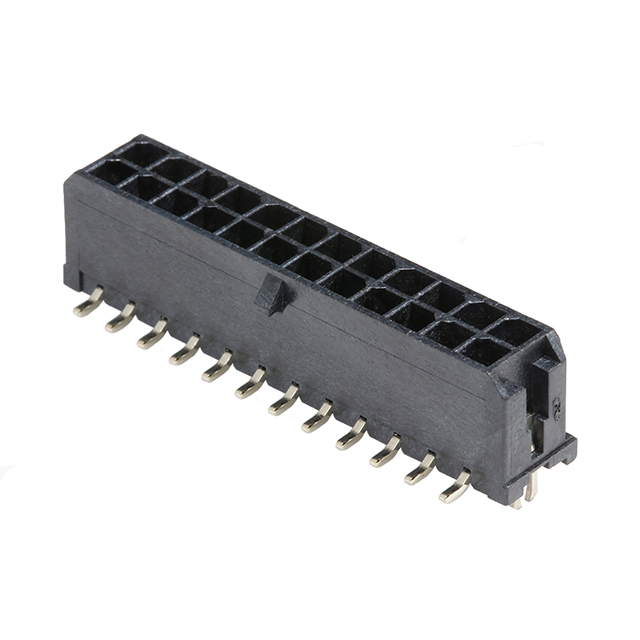

0430452415

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Contact Material :

Brass

Applications :

General Purpose, Medical, Military, Telecommunications

JESD-609 Code :

e3

Contact Shape :

Square

DIN Conformance :

No

Contact Finish - Mating :

Tin

RoHS Status :

ROHS3 Compliant

Termination :

Solder

Row Spacing - Mating :

0.118 (3.00mm)

Contact Type :

Male Pin

Pbfree Code :

yes

IEC Conformance :

No

Fastening Type :

Locking Ramp

Feature :

Board Lock

Voltage - Rated :

600V

Pitch - Mating :

0.118 3.00mm

Packaging :

Tape and Reel (TR)

Material Flammability Rating :

UL94 V-0

Contact Finish Thickness - Mating :

60.0μin 1.52μm

Insulation Material :

Liquid Crystal Polymer (LCP), Glass Filled

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Terminal Pitch :

3mm

Shrouding :

Shrouded - 4 Wall

Mounting Type :

Surface Mount

Connector Type :

Header

Current Rating (Amps) :

8A

Series :

Micro-Fit 3.0 43045

Insulation Color :

Black

Insulation Height :

0.390 9.91mm

Total Number of Contacts :

24

UL Flammability Code :

94V-0

MIL Conformance :

No

Number of Rows :

2

Filter Feature :

No

Factory Lead Time :

6 Weeks

Mixed Contacts :

No

Number of Positions Loaded :

All

Number of Positions :

24

Style :

Board to Cable/Wire
