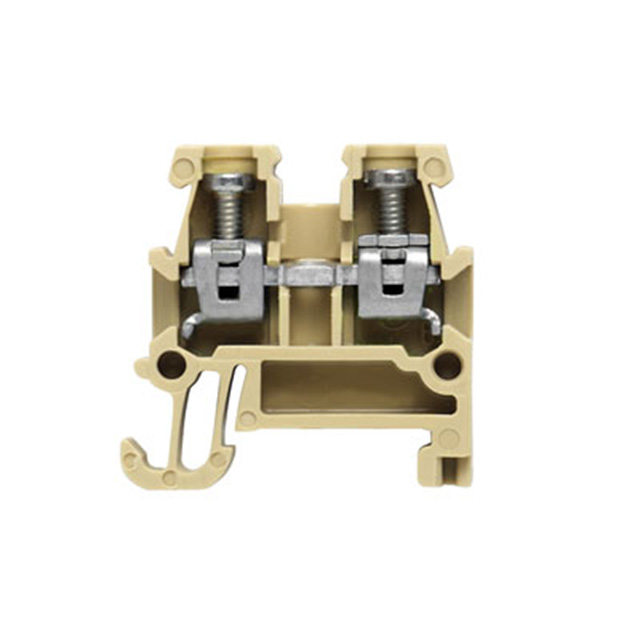

0340460000

Manufacturer :

Weidmuller

Product Category :

Din Rail, Channel

Material :

Nylon

Wire Gauge (Min) :

14 AWG

Wire/Cable Gauge :

22 AWG

Number of Contacts :

2

RoHS Status :

RoHS Compliant

Width :

5.1mm

ECCN Code :

EAR99

Housing Material :

Polyamide

Height :

24mm

Voltage :

150V

Radiation Hardening :

No

Voltage - Rated :

4kV

Current :

15A

Moisture Sensitivity Level (MSL) :

Not Applicable

Stripping Length :

7mm

Color :

Beige

Safety Approval :

CSA

Flammability Rating :

UL94 V-2

Number of Levels :

1

Material Flammability Rating :

UL94 V-2

Number of Decks :

1

Material - Insulation :

Polyamide (PA66), Nylon 6/6

REACH SVHC :

No SVHC

Max Operating Temperature :

100°C

HTS Code :

8536.69.40.40

Depth :

5.1mm

Wire Gauge or Range - mm² :

0.5-2.5mm2

Approval Agency :

CE, CSA, IEC, UR

Length :

24.8mm

Min Operating Temperature :

-50°C

Max Supply Voltage :

250V

Lead Free :

Lead Free

Weight :

3.58g

Termination Style :

Screw

Wire Gauge or Range - AWG :

14-24 AWG

Number of Ways :

2

Series :

SAK

Current Rating :

17.5A

Mount :

CABLE

Number of Rows :

1

Max Current Rating :

17.5A

Orientation :

Straight

Type :

Feed Through

Factory Lead Time :

8 Weeks

Wire Gauge (Max) :

24 AWG
