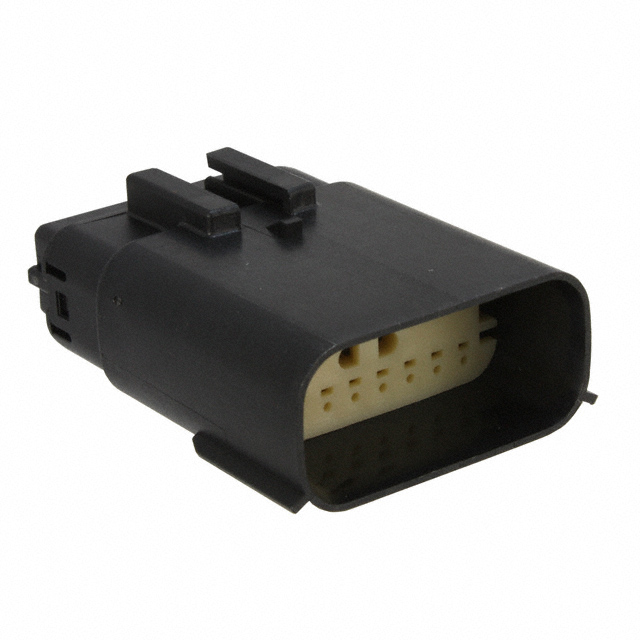

0334821601

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Mounting Type :

Free Hanging (In-Line)

Depth :

53.85mm

Orientation :

Straight

Connector Type :

PLUG

Fastening Type :

Locking Ramp

Number of Rows :

2

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Total Number of Contacts :

16

Color :

Black

IEC Conformance :

No

Feature :

Sealed

Contact Type :

Blade Pin

Number of Positions :

16

Option :

GENERAL PURPOSE

Current Rating :

22A

Voltage - Rated DC :

250V

Contact Termination :

Crimp

Note :

Contacts Not Included

Length :

36.44mm

Pitch :

0.138 3.50mm

DIN Conformance :

No

Pbfree Code :

yes

Min Operating Temperature :

-40°C

MIL Conformance :

No

Series :

MX150 33482

Empty Shell :

No

Mixed Contacts :

No

Filter Feature :

No

Max Operating Temperature :

125°C

Max Voltage Rating (DC) :

500V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Housing Material :

Steel

RoHS Status :

ROHS3 Compliant

Packaging :

Bulk

Shell Material :

Polystyrene

Radiation Hardening :

No

Contact Gender :

Male

Additional Feature :

POLARIZED
