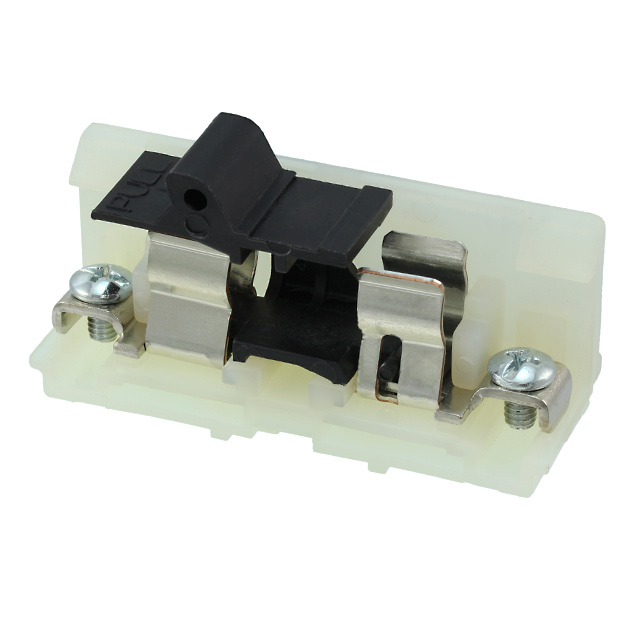

0311

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Accessories

Number Of PCB Rows :

2

Reach Compliance Code :

Compliant

Number of Rows :

2

MIL Conformance :

No

Mating Contact Pitch :

0.031 inch

UL Flammability Code :

94V-0

Filter Feature :

No

Reliability :

COMMERCIAL

Mounting Option 1 :

LOCKING

Insulation Material :

Liquid Crystal Polymer (LCP)

Durability :

100 Cycles

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

IEC Conformance :

No

Polarization Key :

ENDS

Total Number of Contacts :

40

Body/Shell Style :

PLUG

Plating Thickness :

8μin

Rated Current (Signal) :

0.5A

Series :

300, Buchanan

Body Breadth :

0.236 inch

Type :

Fuse and Switch Block

RoHS Status :

RoHS Compliant

Additional Feature :

ROHS AND ELV COMPLIANT

Mixed Contacts :

No

Contact Material :

NOT SPECIFIED

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

PCB Contact Row Spacing :

4.3942 mm

Contact Resistance :

30mOhm

Withdrawl Force-Min :

.1112 N

Operating Temperature (Min) :

-40°C

Operating Temperature (Max) :

125°C

JESD-609 Code :

e3

Insulation Resistance :

500000000Ohm

Color :

White

Body Depth :

0.299 inch

PCB Contact Pattern :

RECTANGULAR

Number of Conductors :

ONE

Option :

GENERAL PURPOSE

Contact Style :

CENTRONIC

Terminal Pitch :

0.8mm

Contact Pattern :

RECTANGULAR

Contact Finish - Mating :

NOT SPECIFIED

Body Length or Diameter :

0.858 inch

Dielectric Withstanding Voltage :

500VAC V

Reference Standard :

UL

DIN Conformance :

No

Mounting Style :

Straight

Insertion Force-Max :

.8896 N

Contact Gender :

Male
