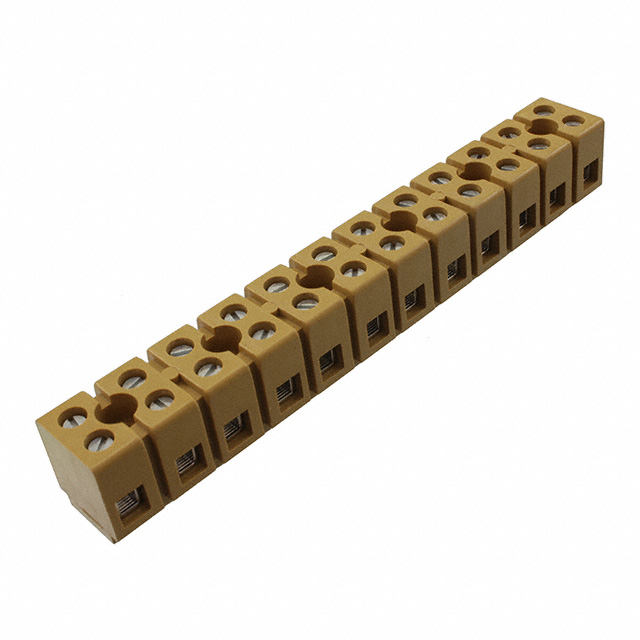

0243520000

Manufacturer :

Weidmuller

Product Category :

Barrier Blocks

Housing Material :

Plastic

Weight :

43.7g

Number of Wire Entries :

24

Wire/Cable Gauge :

22 AWG

ECCN Code :

EAR99

Length :

110mm

HTS Code :

8536.69.40.40

Packaging :

Bulk

Wire Gauge (Min) :

12 AWG

Number of Ways :

12

Barrier Type :

Enclosed

Top Termination :

Screws

Depth :

15mm

Additional Feature :

94V-0

REACH SVHC :

No SVHC

Termination :

Screw

Bottom Termination :

Closed

Material Flammability Rating :

UL94 5VA

Current Rating :

24A

Wire Gauge :

12-22 AWG

Wire Gauge (Max) :

22 AWG

RoHS Status :

RoHS Compliant

Lead Free :

Lead Free

Number of Rows :

2

Voltage - Rated :

300V

Max Current Rating :

20A

Approval Agency :

CE, CSA, IEC, UR

Width :

15mm

Material - Insulation :

Gemin (Thermosetting Plastic)

Number of Circuits :

12

Height :

16.1mm

Series :

MK

Moisture Sensitivity Level (MSL) :

Not Applicable

Color :

Yellow

Safety Approval :

UL; CSA

Radiation Hardening :

No

Max Supply Voltage :

300V

Mounting Type :

Chassis, Panel

Mount :

Cable, Chassis, Panel

Number of Decks :

1

Terminal Block Type :

Barrier Block

Flammability Rating :

UL94 5VA

Operating Temperature :

-60°C~130°C

Factory Lead Time :

16 Weeks

Stripping Length :

5mm
