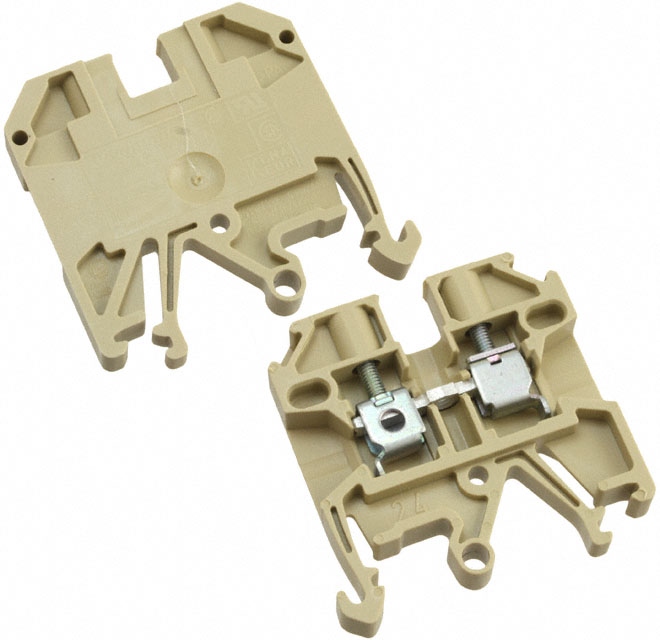

0218660000

Manufacturer :

Weidmuller

Product Category :

Din Rail, Channel

Series :

SAK

Type :

Feed Through

Housing Material :

Nylon

REACH SVHC :

No SVHC

Wire Gauge or Range - AWG :

12-26 AWG

Current - UL :

20A

Factory Lead Time :

6 Weeks

Material Flammability Rating :

UL94 V-2

Current Rating :

24A

Voltage - IEC :

800V

Number of Ways :

2

Wire Gauge (Max) :

26 AWG

Color :

Beige

RoHS Status :

RoHS Compliant

Flammability Rating :

UL94 V-2

Max Current Rating :

25A

Width :

6.1mm

Safety Approval :

UL; CSA; CE

Contact Plating :

Tin

Max Operating Temperature :

100°C

Termination Style :

Screw

Number of Decks :

1

Approval Agency :

CE, CSA, IEC, UR

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Rows :

2

Lead Free :

Lead Free

Wire Gauge or Range - mm² :

0.5-6mm2

Min Operating Temperature :

-50°C

Orientation :

Straight

Radiation Hardening :

No

Stripping Length :

10mm

Wire Gauge (Min) :

12 AWG

HTS Code :

8536.69.40.40

Number of Levels :

1

Wire/Cable Gauge :

22 AWG

Length :

44.5mm

Current :

21A

Height :

42.5mm

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Voltage :

600V

ECCN Code :

EAR99

Voltage - Rated :

8kV
