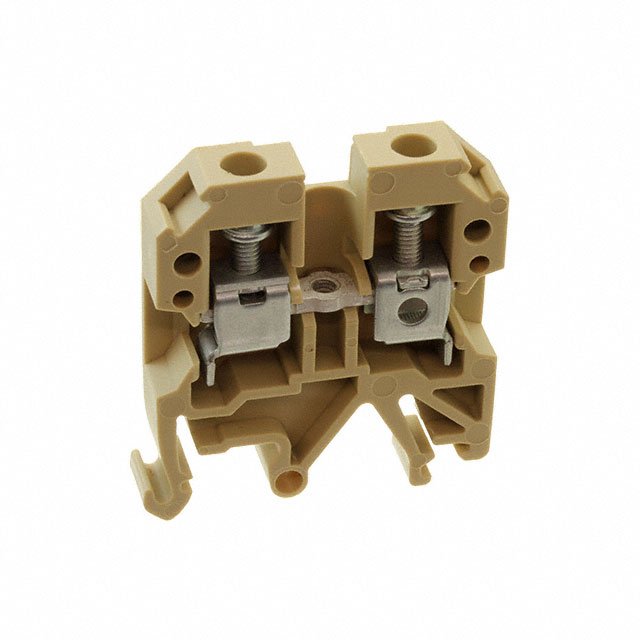

0212860000

Manufacturer :

Weidmuller

Product Category :

Din Rail, Channel

Factory Lead Time :

6 Weeks

Series :

SAK

Length :

40mm

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Housing Material :

Nylon

Number of Rows :

2

Material Flammability Rating :

UL94 V-2

Number of Levels :

1

Approval Agency :

CE, CSA, IEC, UR

Wire Gauge or Range - AWG :

8-22 AWG

Wire Gauge (Max) :

22 AWG

Number of Decks :

1

HTS Code :

8536.69.40.40

Max Operating Temperature :

100°C

Terminal Width :

8.0mm

Type :

Feed Through

Flammability Rating :

UL94 V-2

Lead Free :

Lead Free

RoHS Status :

RoHS Compliant

Number of Ways :

2

Radiation Hardening :

No

Current :

36A

Height :

47.5mm

Wire Gauge or Range - mm² :

0.5-10mm2

Voltage - Rated :

8kV

Voltage :

800V

Wire/Cable Gauge :

22 AWG

Min Operating Temperature :

-50°C

Termination Style :

Screw

Color :

Beige

Wire Gauge (Min) :

8 AWG

ECCN Code :

EAR99

Current Rating :

41A

Width :

8mm

Orientation :

Straight

Safety Approval :

UL; CSA

Max Current Rating :

40A

Moisture Sensitivity Level (MSL) :

Not Applicable

Stripping Length :

12mm
