0191150010
Or copy the link below:
- Mfr.Part #
- 0191150010
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description

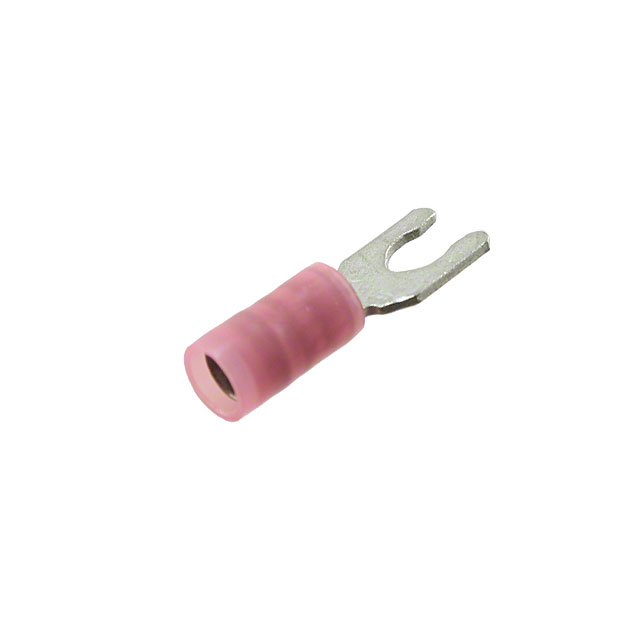

- CONN SPADE TERM 18-22AWG #6 RED
- Stock
- 29,317
- In Stock ：
- 29,317
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Spade Connectors
- Width - Outer Edges :
- 0.255 6.48mm
- Terminal and Terminal Block Type :
- FORK TERMINAL
- ECCN Code :
- EAR99
- Color :
- Red
- Length - Ring Center to Termination :
- 0.230 5.84mm
- Material - Insulation :
- Polyamide (PA), Nylon
- Wire Gauge :
- 18-22 AWG
- Series :
- Avikrimp
- Packaging :
- Tape and Reel (TR)
- Factory Lead Time :
- 4 Weeks
- Termination :
- Crimp
- Insulation :
- Insulated
- HTS Code :
- 8536.90.40.00
- Insulation Diameter :
- 0.140 (3.56mm)
- Length - Termination :
- 0.411 10.44mm
- Stud/Tab Size :
- 6 Stud
- Terminal Type :
- Spring, Snap
- Mounting Type :
- Free Hanging (In-Line)
- RoHS Status :
- ROHS3 Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Tongue Inside Opening :
- 0.114 (2.90mm)
- Length - Overall :
- 0.810 20.57mm
- Pbfree Code :
- yes
- Contact Finish :
- Tin
- Contact Material :
- Copper
- Datasheets
- 0191150010
