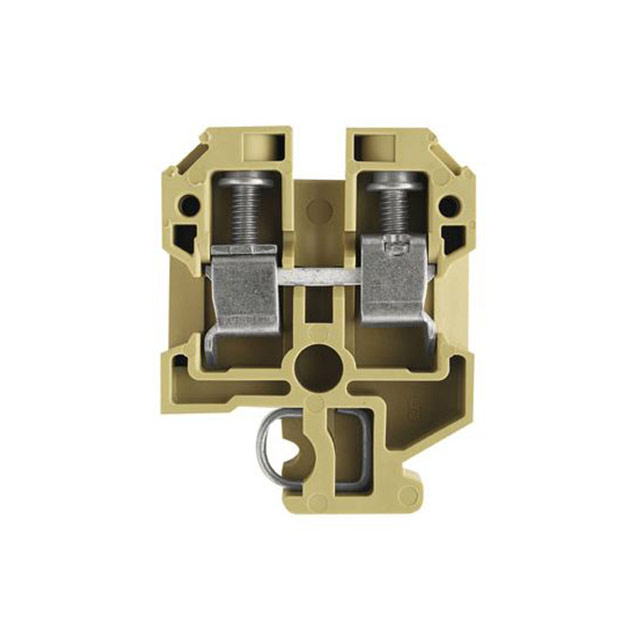

0110060000

Manufacturer :

Weidmuller

Product Category :

Din Rail, Channel

Terminal Width :

10.0mm

Wire/Cable Gauge :

6 AWG

Max Current Rating :

60A

ECCN Code :

EAR99

Safety Approval :

CSA

Current :

50A

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Current Rating :

57A

Wire Gauge (Min) :

6 AWG

Voltage - IEC :

800V

Radiation Hardening :

No

Approval Agency :

CE, CSA, IEC, UR

Mount :

CABLE

Number of Decks :

1

Flammability Rating :

UL94 V-2

Number of Levels :

1

Wire Gauge or Range - mm² :

1.5-10mm2

HTS Code :

8536.69.40.40

Height :

49mm

Voltage :

600V

Factory Lead Time :

12 Weeks

Max Operating Temperature :

100°C

Lead Free :

Lead Free

Color :

Beige

Width :

10mm

Wire Gauge (Max) :

14 AWG

RoHS Status :

RoHS Compliant

Termination Style :

Screw

Wire Gauge or Range - AWG :

6-14 AWG

Type :

Feed Through

Length :

40mm

Material Flammability Rating :

UL94 V-2

Voltage - Rated :

8kV

Voltage - UL :

600V

Number of Rows :

2

Stripping Length :

12mm

Housing Material :

Nylon

Number of Ways :

2

Series :

SAK

Current - UL :

60A

Moisture Sensitivity Level (MSL) :

Not Applicable

Min Operating Temperature :

-50°C
