ZXTEM322TA

Share

Or copy the link below:

Mfr.Part #
ZXTEM322TA
Manufacturer
Diodes Incorporated
Package / Case
3-PowerSMD, Flat Leads
Datasheet
Download
Description
TRANS NPN 80V 3.5A 3MLP/DFN
Stock
19,076
In Stock :
19,076

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Diodes Incorporated
Product Category :
Transistors - Bipolar (BJT) - Single
Current - Collector Cutoff (Max) :
25nA
Pin Count :
5
Current Rating :
3.5A
Voltage - Rated DC :
80V
Length :
2mm
Polarity/Channel Type :
NPN
Height :
1mm
Transistor Application :
SWITCHING
Package / Case :
3-PowerSMD, Flat Leads
JESD-609 Code :
e3
Gain Bandwidth Product :
160MHz
Max Collector Current :
3.5A
Terminal Position :
Dual
Base Part Number :
ZXTEM322
Number of Elements :
1
Time@Peak Reflow Temperature-Max (s) :
40
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
DC Current Gain (hFE) (Min) @ Ic, Vce :
300 @ 200mA 2V
Element Configuration :
Single
Collector Emitter Voltage (VCEO) :
80V
Vce Saturation (Max) @ Ib, Ic :
325mV @ 300mA, 3.5A
Width :
2mm
Transition Frequency :
160MHz
Number of Pins :
322
Peak Reflow Temperature (Cel) :
260
Mount :
Surface Mount
Mounting Type :
Surface Mount
Emitter Base Voltage (VEBO) :
7.5V
Published :
2006
ECCN Code :
EAR99
Case Connection :
COLLECTOR
Number of Terminations :
3
Transistor Element Material :
SILICON
RoHS Status :
ROHS3 Compliant
Operating Temperature :
-55°C~150°C TJ
Collector Base Voltage (VCBO) :
100V
Transistor Type :
NPN
Power Dissipation :
3W
Collector Emitter Breakdown Voltage :
80V
Terminal Finish :
Matte Tin (Sn)
Qualification Status :
Not Qualified
Frequency :
160MHz
JESD-30 Code :
S-PDSO-F3
Lead Free :
Lead Free
Max Power Dissipation :
3W
Packaging :
Tape and Reel (TR)
Max Breakdown Voltage :
80V
Datasheets
ZXTEM322TA
Introducing Transistors - Bipolar (BJT) - Single Diodes Incorporated ZXTEM322TA from Chip IC,where excellence meets affordability. This product stands out with its Package / Case:3-PowerSMD, Flat Leads, Base Part Number:ZXTEM322, Number of Pins:322, Mounting Type:Surface Mount, Number of Terminations:3, Operating Temperature:-55°C~150°C TJ, ZXTEM322TA pinout, ZXTEM322TA datasheet PDF, ZXTEM322TA amp .Beyond Transistors - Bipolar (BJT) - Single Diodes Incorporated ZXTEM322TA ,we also offer BC817-40,235, BC817-40,215, BC807-40,215, Our vast inventory has you covered. Contact us now for immediate solutions.

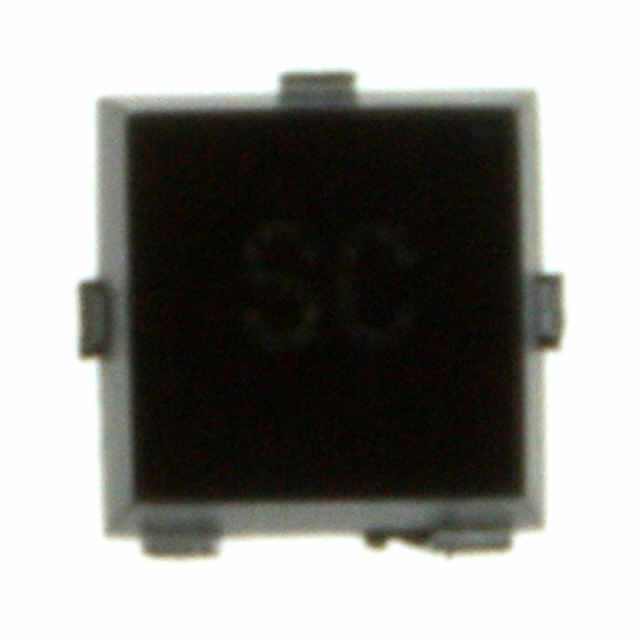

Diodes Incorporated ZXTEM322TA


NPN -55°C~150°C TJ 25nA 1 Elements 3 Terminations SILICON NPN 3-PowerSMD, Flat Leads Tape & Reel (TR) Surface Mount

ZXTEM322TA Overview


This device has a DC current gain of 300 @ 200mA 2V, which is the ratio between the base current and the collector current.A VCE saturation (Max) of 325mV @ 300mA, 3.5A means Ic has reached its maximum value(saturated).A high level of efficiency can be achieved if the base voltage of the emitter remains at 7.5V.This device has a current rating of 3.5A which corresponds to the maximum current it can carry for an indefinite period without deteriorating too much.As you can see, the part has a transition frequency of 160MHz.A breakdown input voltage of 80V volts can be used.A maximum collector current of 3.5A volts is possible.

ZXTEM322TA Features


the DC current gain for this device is 300 @ 200mA 2V
the vce saturation(Max) is 325mV @ 300mA, 3.5A
the emitter base voltage is kept at 7.5V
the current rating of this device is 3.5A
a transition frequency of 160MHz


ZXTEM322TA Applications


There are a lot of Diodes Incorporated
ZXTEM322TA applications of single BJT transistors.


  • Inverter
  • Interface
  • Driver
  • Muting
