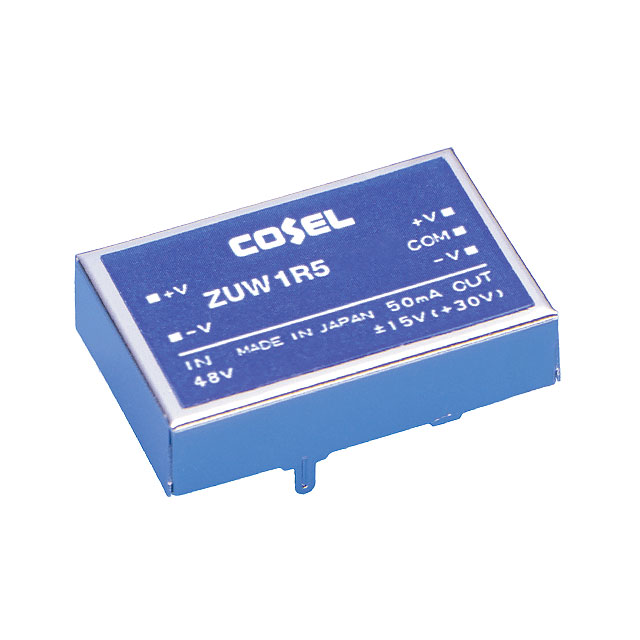

ZUW1R52412
- Mfr.Part #
- ZUW1R52412
- Manufacturer
- Cosel
- Package / Case
- 5-DIP Module
- Datasheet
- Download
- Description
- DC DC CONVERTER +/-12V
- Stock
- 11,830
- In Stock :
- 11,830
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Cosel
- Product Category :
- JESD-30 Code :
- R-XXMA-P
- Voltage - Input (Min) :
- 18V
- Mount :
- PCB, Through Hole
- Current - Output 2 :
- 65mA
- Lead Free :
- Lead Free
- Type :
- Isolated Module
- Output Current :
- 65mA
- Efficiency :
- 71%
- Reach Compliance Code :
- Unknown
- Approval Agency :
- CSA
- Output Power :
- 1.5W
- RoHS Status :
- ROHS3 Compliant
- Mounting Type :
- Through Hole
- Input Current :
- 92mA
- Turn On Delay Time :
- 20 ms
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- ECCN Code :
- EAR99
- Depth :
- 7mm
- Number of Functions :
- 1
- Voltage - Output 2 :
- -12V
- Applications :
- ITE (Commercial)
- Voltage - Isolation :
- 500V
- Trim/Adjustable Output :
- No
- Current - Output 1 :
- 65mA
- Voltage - Input (Max) :
- 36V
- Terminal Position :
- UNSPECIFIED
- Qualification Status :
- Not Qualified
- Total Power Output-Max :
- 1.56W
- Output Voltage :
- 12V
- Series :
- ZUW (1.5W)
- Number of Terminations :
- 5
- Factory Lead Time :
- 6 Weeks
- Height :
- 7.112mm
- Size / Dimension :
- 1.08Lx0.71W x 0.28 H 27.5mmx18.0mmx7.0mm
- Current - Output (Max) :
- 65mA 65mA
- Operating Temperature :
- -20°C~71°C With Derating
- Package / Case :
- 5-DIP Module
- Input Voltage-Nom :
- 24V
- Published :
- 2005
- Feature :
- OCP
- Terminal Form :
- PIN/PEG
- Weight :
- 10.000011g
- Number of Outputs :
- 2
- Datasheets
- ZUW1R52412
