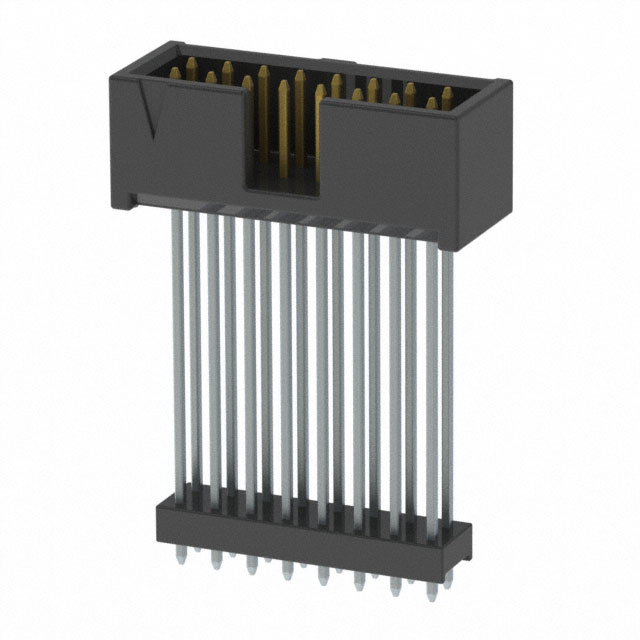

ZSS-108-08-L-D-1240

Manufacturer :

Samtec, Inc.

Product Category :

Headers, Male Pins

Packaging :

Bulk

MIL Conformance :

No

Gender :

Male

Number of Contacts :

16

Mating Contact Row Spacing :

0.1 inch

Insulation Material :

GLASS FILLED POLYESTER

Contact Plating :

Gold

Operating Temperature (Min) :

-55°C

JESD-609 Code :

e3

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Reliability :

COMMERCIAL

RoHS Status :

ROHS3 Compliant

Number of Rows :

2

Termination :

Solder

Additional Feature :

SHROUDED

Pbfree Code :

yes

Radiation Hardening :

No

Body Length or Diameter :

0.95 inch

Length - Termination :

0.09 inch

DIN Conformance :

No

UL Flammability Code :

94V-0

Number of Conductors :

ONE

Contact Pattern :

RECTANGULAR

Mixed Contacts :

No

Polarization Key :

POLARIZED HOUSING

Option :

GENERAL PURPOSE

Insulation Resistance :

5000000000Ohm

Insulator Color :

Black

Factory Lead Time :

2 Weeks

Rated Current (Signal) :

3A

Connector Type :

BOARD STACKING CONNECTOR

Pitch :

2.54mm

Body Breadth :

0.365 inch

Contact Style :

SQ PIN-SKT

Mount :

Through Hole

Reference Standard :

UL

PCB Contact Pattern :

RECTANGULAR

Plating Thickness :

10μin

Dielectric Withstanding Voltage :

1400VAC V

Number Of PCB Rows :

2

IEC Conformance :

No

Filter Feature :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
