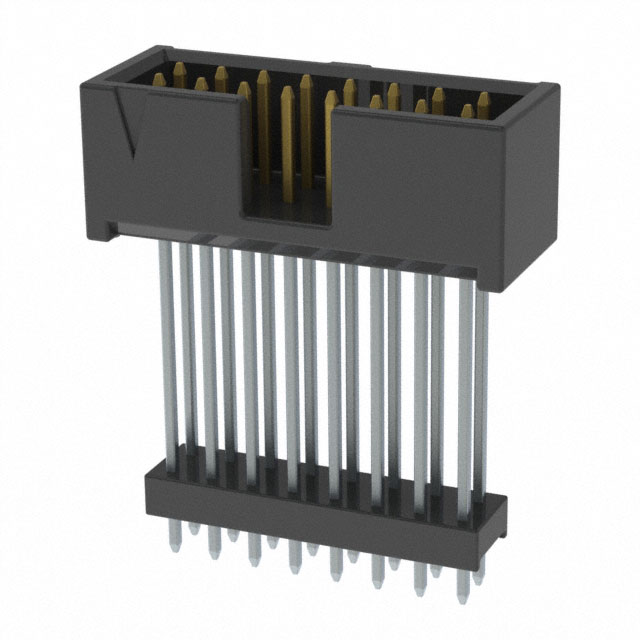

ZSS-108-06-L-D-1040

Manufacturer :

Samtec, Inc.

Product Category :

Headers, Male Pins

Connector Type :

BOARD STACKING CONNECTOR

Factory Lead Time :

2 Weeks

Body Depth :

1.04 inch

JESD-609 Code :

e3

DIN Conformance :

No

Mixed Contacts :

No

Dielectric Withstanding Voltage :

1400VAC V

Insulator Color :

Black

Reference Standard :

UL

Pitch :

2.54mm

IEC Conformance :

No

Plating Thickness :

10μin

Operating Temperature (Min) :

-55°C

RoHS Status :

ROHS3 Compliant

Insulation Material :

GLASS FILLED POLYESTER

Filter Feature :

No

MIL Conformance :

No

Reliability :

COMMERCIAL

Number of Conductors :

ONE

Packaging :

Bulk

Length - Termination :

0.09 inch

Polarization Key :

POLARIZED HOUSING

Contact Plating :

Gold

Contact Pattern :

RECTANGULAR

Option :

GENERAL PURPOSE

Insulation Resistance :

5000000000Ohm

Termination :

Solder

Body Breadth :

0.365 inch

Additional Feature :

SHROUDED

Rated Current (Signal) :

3A

Number of Contacts :

16

UL Flammability Code :

94V-0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Radiation Hardening :

No

PCB Contact Pattern :

RECTANGULAR

Pbfree Code :

yes

Body Length or Diameter :

0.95 inch

Mount :

Through Hole

Number of Rows :

2

Number Of PCB Rows :

2

Mating Contact Row Spacing :

0.1 inch

Contact Style :

SQ PIN-SKT

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Gender :

Male
