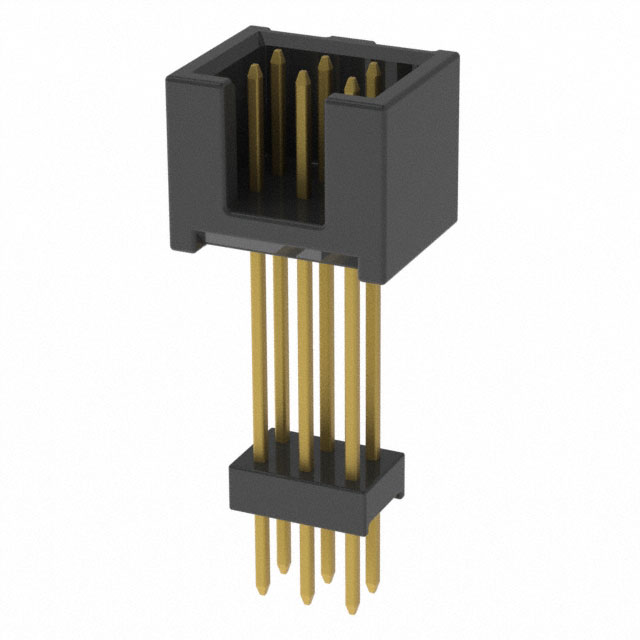

ZSS-103-06-G-D-960
Or copy the link below:
- Mfr.Part #
- ZSS-103-06-G-D-960
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 6POS 2.54MM
- Stock
- 4,274
- In Stock ：
- 4,274
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Headers, Male Pins
- Operating Temperature :
- -55°C~125°C
- Contact Length - Post :
- 0.090 2.29mm
- Depth :
- 9.27mm
- RoHS Status :
- ROHS3 Compliant
- Current Rating (Amps) :
- 3A
- Insulation Material :
- Polyester, Glass Filled
- Series :
- Flex Stack, ZSS
- Feature :
- Keying Slot
- Factory Lead Time :
- 3 Weeks
- UL Flammability Code :
- 94V-0
- Contact Material :
- Phosphor Bronze
- Contact Finish Thickness - Mating :
- 10.0μin 0.25μm
- Housing Material :
- Polyester
- ECCN Code :
- EAR99
- Contact Length - Mating :
- 0.250 6.35mm
- Option :
- GENERAL PURPOSE
- Orientation :
- Straight
- Style :
- Board to Board or Cable
- Shrouding :
- Shrouded - 4 Wall
- Number of Rows :
- 2
- IEC Conformance :
- No
- Termination :
- Solder
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Mount :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mixed Contacts :
- No
- MIL Conformance :
- No
- Number of Positions Loaded :
- All
- Mounting Type :
- Through Hole
- Published :
- 2012
- Length :
- 11.43mm
- DIN Conformance :
- No
- Gender :
- Male
- Contact Finish Thickness - Post :
- 3.00μin 0.076μm
- Packaging :
- Tube
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Pbfree Code :
- yes
- Contact Type :
- Male Pin
- Connector Type :
- Header, Elevated
- Contact Shape :
- Square
- Radiation Hardening :
- No
- Number of Positions :
- 6
- Overall Contact Length :
- 1.130 28.70mm
- Filter Feature :
- No
- Housing Color :
- Black
- Material Flammability Rating :
- UL94 V-0
- Insulation Height :
- 1.040 26.42mm
- Fastening Type :
- Push-Pull
- Pitch - Mating :
- 0.100 2.54mm
- Contact Finish - Mating :
- Gold
- Datasheets
- ZSS-103-06-G-D-960
Flex Stack, ZSS Series 2-Row Header, Elevated Solder Phosphor Bronze Tube Through Hole Gold Polyester, Glass Filled 6-Position Board to Board or Cable 1.040 26.42mm Height
ZSS-103-06-G-D-960 Overview
The packaging contains Header, Elevated.There is a Through Hole mounting type for the device.This product is packaged in a case marked Tube.Product number Flex Stack, ZSS belongs to the Flex Stack, ZSS Series.In many ways, it is more powerful due to its Keying Slot feature.There is a Through Hole mount on the part.This device operates at a temperature of -55°C~125°C.
ZSS-103-06-G-D-960 Features
Flex Stack, ZSS series
ZSS-103-06-G-D-960 Applications
There are a lot of Samtec Inc.
ZSS-103-06-G-D-960 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
