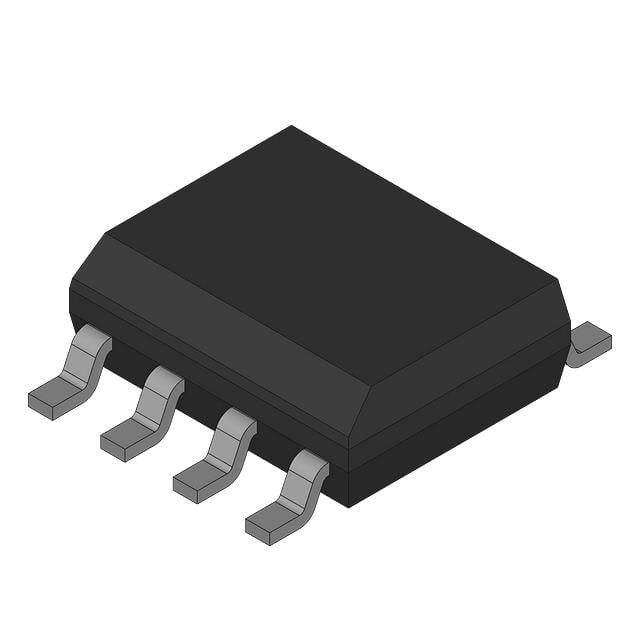

ZL40123DCE1
Or copy the link below:
- Mfr.Part #
- ZL40123DCE1
- Manufacturer
- Zarlink
- Package / Case
- Datasheet
- Download
- Description
- ZARLINK VIDEO AMPLIFIER
- Stock
- 1,833
- In Stock ：
- 1,833
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Zarlink
- Product Category :
- Video Amps and Modules
- Mounting Type :
- Surface Mount
- Terminal Finish :
- MATTE TIN
- Supply Voltage-Max (Vsup) :
- 6V
- Number of Channels :
- 1
- Pin Count :
- 8
- Current - Supply :
- 5.2mA
- JESD-609 Code :
- e3
- Supplier Device Package :
- 8-SOP
- Series :
- ZL40123
- Surface Mount :
- yes
- Number of Functions :
- 2
- Bandwidth :
- 450000 kHz
- Supply Voltage-Min (Vsup) :
- 4V
- JESD-30 Code :
- R-PDSO-G8
- Temperature Grade :
- Industrial
- Current - Output / Channel :
- 65mA
- Qualification Status :
- COMMERCIAL
- Voltage - Supply, Single/Dual (±) :
- 4V~6V
- Number of Terminations :
- 8
- Operating Temperature (Max) :
- 85°C
- Output Type :
- Differential
- Operating Temperature (Min) :
- -40°C
- Terminal Form :
- Gull wing
- RoHS Status :
- RoHS Compliant
- Terminal Position :
- Dual
- Consumer IC Type :
- Video Amplifier
- Slew Rate :
- 2600V/µs
- -3db Bandwidth :
- 450MHz
- Height Seated (Max) :
- 1.75mm
- Terminal Pitch :
- 1.27mm
- Packaging :
- Bulk
- Length :
- 4.9mm
- Applications :
- Current Feedback
- Datasheets
- ZL40123DCE1
Video Amps and Modules Zarlink ZL40123DCE1 Overview
The Video Amps and Modules Zarlink ZL40123DCE1 is an exemplary model in the realm of video amplification technology. Designed by Zarlink, a trailblazer in the semiconductor industry, this product stands out for its robust performance in enhancing video signal quality. The ZL40123DCE1 is engineered to meet the high demands of modern video applications, providing exceptional amplification with minimal signal distortion. Its compact form factor and power efficiency make it a popular choice among industry professionals looking for reliability and superior video performance. Its versatility not only ensures seamless integration into existing infrastructures but also affirms its suitability for a wide range of commercial and industrial applications, thereby presenting a persuasive value proposition for businesses looking to procure in bulk.
ZL40123DCE1 Features
The Zarlink Video Amplifier ZL40123DCE1 comes with a host of features designed to optimize video signal processing. It offers low noise performance and a high bandwidth, which is pivotal for maintaining signal integrity. The device's dynamic range is expansively suited to transmit high-quality video without the risk of compression that could degrade the picture. Its adaptability to different video formats and compatibility with multiple video standards underscores its versatility and future-proof nature.
ZL40123DCE1 Applications
- Broadcast Video Equipment: Tailored for use in professional broadcast setups, the ZL40123DCE1 amplifies video signals while maintaining clarity and color integrity crucial for high-definition broadcasts.
- Video Conferencing Systems: In video conferencing, this amplifier ensures that video signals are transmitted with high fidelity, providing clear images even in large-scale deployment scenarios such as corporate or educational institutions.
- Medical Imaging Equipment: The ZL40123DCE1's accuracy and reliability make it an ideal choice for medical imaging applications, where precision and image quality are of utmost importance for diagnostics.
- Security Surveillance Systems: With enhanced signal quality, this amplifier plays a pivotal role in security camera setups, ensuring that the video output remains crisp and clear for effective monitoring and recordings.
- Video Processing Units: Specifically designed to handle the rigors of complex video processing tasks, the ZL40123DCE1 is an essential component in providing support to high-performance video processing hardware.
