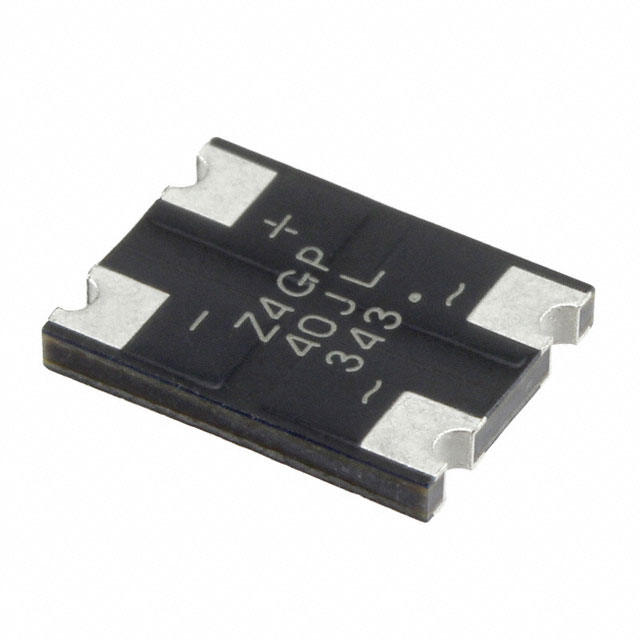

Z4DGP406L-HF
Or copy the link below:
- Mfr.Part #
- Z4DGP406L-HF
- Manufacturer
- Comchip Technology
- Package / Case
- Z4-D
- Datasheet
- Download
- Description
- BRIDGE RECT 1PHASE 600V 4A Z4-D
- Stock
- 20,180
- In Stock ：
- 20,180
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Comchip Technology
- Product Category :
- Diodes - Bridge Rectifiers
- Max Reverse Leakage Current :
- 5μA
- Voltage - Forward (Vf) (Max) @ If :
- 950mV @ 4A
- Terminal Position :
- Dual
- Length :
- 10.6mm
- Mounting Type :
- Surface Mount
- Operating Temperature :
- -55°C~175°C TJ
- Current - Average Rectified (Io) :
- 4A
- Number of Phases :
- 1
- Published :
- 2013
- Diode Element Material :
- SILICON
- Mount :
- Surface Mount
- JESD-609 Code :
- e3
- Additional Feature :
- LOW POWER LOSS
- Package / Case :
- Z4-D
- Packaging :
- Tape and Reel (TR)
- Diode Type :
- Single Phase
- Output Current-Max :
- 4A
- RoHS Status :
- ROHS3 Compliant
- Configuration :
- BRIDGE, 4 ELEMENTS
- Width :
- 8.2mm
- Height :
- 1.55mm
- Number of Elements :
- 4
- Terminal Form :
- NO LEAD
- Current - Reverse Leakage @ Vr :
- 5µA @ 600V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- JESD-30 Code :
- R-PDSO-N4
- Voltage - Peak Reverse (Max) :
- 600V
- Terminal Finish :
- Tin (Sn)
- Factory Lead Time :
- 10 Weeks
- Number of Terminations :
- 4
- Max Surge Current :
- 150A
- HTS Code :
- 8541.10.00.80
- Datasheets
- Z4DGP406L-HF
Single Phase Bridge Rectifier Surface Mount -55°C~175°C TJ 5μA @ 600V 950mV @ 4A 4-Termination 1-Phase Z4-D Tape & Reel (TR)
Z4DGP406L-HF Overview
A Z4-D package electronic component is basically a type of electronic component.The reverse leakage current must be monitored and should not exceed 0 volts.Mounting method of the device is Surface Mount.Keeping the temperature at -55°C~175°C TJ ensures normal operation.Its maximum output voltage is 4A.Current surges should be monitored and not exceeded.
Z4DGP406L-HF Features
Z4-D package
operating at a temperature of -55°C~175°C TJ
the maximum output voltage of 4A
Z4DGP406L-HF Applications
There are a lot of Comchip Technology
Z4DGP406L-HF applications of bridge rectifiers.
- High forward surge current capability
- Low thermal resistance
- Extremely robust construction
- Fuse-in-glass diodes design
- Electrically isolated aluminum case
- Motor controls – Low Voltage and Medium Voltage converters
- SCR power bridges for solid state starters
- SCR and diode based input rectifiers
- Crowbar systems for motor drives
- Wind power (alternative energy) – Converters available as diodes, SCRs or IGBTs
