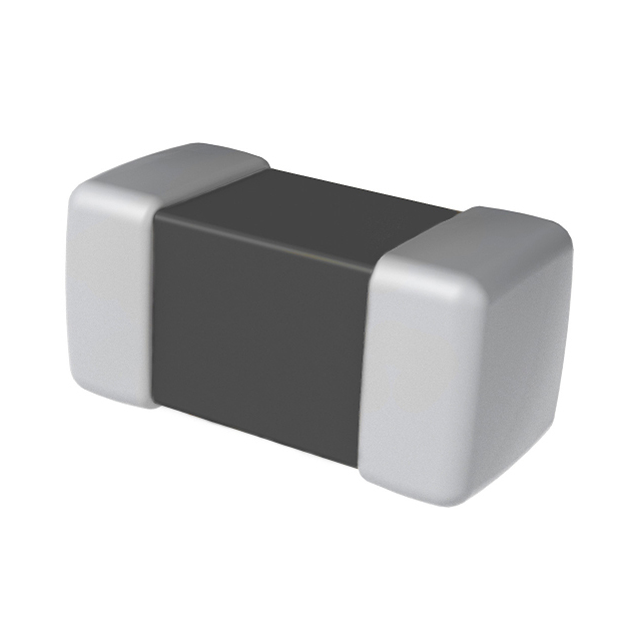

Z1806C111APWST
- Mfr.Part #
- Z1806C111APWST
- Manufacturer
- KEMET
- Package / Case
- 1806 (4516 Metric)
- Datasheet
- Download
- Description
- POWER LINE FERRITE CHIP BEAD 110
- Stock
- 327
- In Stock :
- 327
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- KEMET
- Product Category :
- Ferrite Beads and Chips
- Package :
- Digi-Reel?
- Mounting Type :
- Surface Mount
- Termination Style :
- SMD/SMT
- Length :
- 4.5 mm
- Size / Dimension :
- 0.177" L x 0.063" W (4.50mm x 1.60mm)
- Dimensions :
- 0.177 x 0.063 x 0.063mm
- Operating Temperature :
- -40°C ~ 125°C
- Tolerance :
- 25 %
- Termination :
- -
- Product Length :
- 4.5mm
- Height (Max) :
- 0.051" (1.30mm)
- Qualification :
- -
- Package / Case :
- 1806 (4516 Metric)
- Reach Compliance Code :
- Compliant
- Product Type :
- Ferrite Beads
- Number of Lines :
- 1
- Brand :
- KEMET
- Subcategory :
- Ferrites
- Case Code :
- 1806
- Current Rating (Max) :
- 4A
- Impedance :
- 110Ohm
- Type :
- Chip Bead
- Package Type :
- Tape and Reel
- JESD-609 Code :
- e3
- Physical Dimension :
- L4.5XB1.6XH1.1 (mm)/L.1772XB.063XH.0433 (inch)
- Impedance Tolerance :
- ± 25%
- Width :
- 1.6 mm
- RoHS :
- Details
- Product Height :
- 1.6mm
- Construction :
- Chip Bead
- Terminal Finish :
- Matte Tin (Sn)
- Height :
- 1.1 mm
- Material :
- Ferrite
- Factory Lead Time :
- 79 Weeks
- Base Product Number :
- Z1806C
- Product Width :
- 1.6mm
- Ratings :
- -
- Capacitance :
- -
- Packaging :
- MouseReel
- Minimum Operating Temperature :
- - 40 C
- Diameter :
- -
- Filter Type :
- Power Line
- Impedance @ Frequency :
- 110 Ohms @ 100 MHz
- Product :
- Ferrite Chip Beads
- Packing Method :
- TR
- DC Resistance (DCR) (Max) :
- 14mOhm
- Series :
- Z-PWS
- Rated Current :
- 4 A
- Product Status :
- Last Time Buy
- Manufacturer :
- KEMET
- Product Category :
- Ferrite Beads
- Test Frequency :
- 100 MHz
- Maximum Operating Temperature :
- + 125 C
- Datasheets
- Z1806C111APWST
