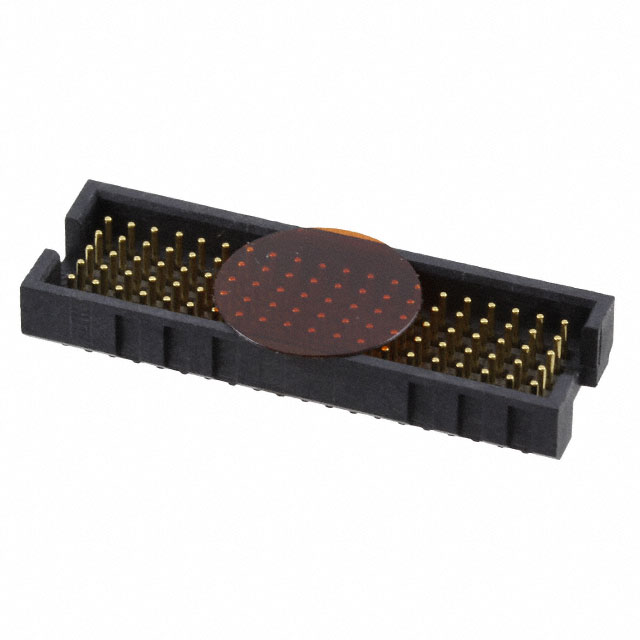

YFT-20-05-H-05-SB-K

Manufacturer :

Samtec, Inc.

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Filter Feature :

No

Pitch :

0.050 1.27mm

Termination :

Solder

Reference Standard :

UL

Factory Lead Time :

6 Weeks

Contact Finish :

Gold

Series :

SamArray® YFT

Contact Material :

Brass

ECCN Code :

EAR99

Stack Height (Mating) :

5mm

Plating Thickness :

30μin

Mixed Contacts :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions :

100

Packaging :

Tube

Height Above Board :

0.177 4.50mm

Number of Rows :

5

Housing Color :

Black

PCB Contact Row Spacing :

1.27 mm

Number of Conductors :

ONE

Total Number of Contacts :

100

Length :

27.94mm

Mounting Type :

Surface Mount

JESD-609 Code :

e4

Max Operating Temperature :

125°C

Feature :

Pick and Place

Min Operating Temperature :

-55°C

Contact Style :

RND PIN-SKT

Housing Material :

Polymer

Pbfree Code :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Max Voltage Rating (AC) :

275V

PCB Contact Pattern :

RECTANGULAR

Depth :

9.4mm

Gender :

Male

Orientation :

Straight

Number Of PCB Rows :

5

Polarization Key :

POLARIZED HOUSING

Contact Pattern :

RECTANGULAR

Contact Finish Thickness :

30.0μin 0.76μm

Published :

2012

RoHS Status :

ROHS3 Compliant

Body Breadth :

0.37 inch

Radiation Hardening :

No

Additional Feature :

LOW PROFILE

Option :

GENERAL PURPOSE

Connector Type :

Array, Male Pins

Durability :

200 Cycles
