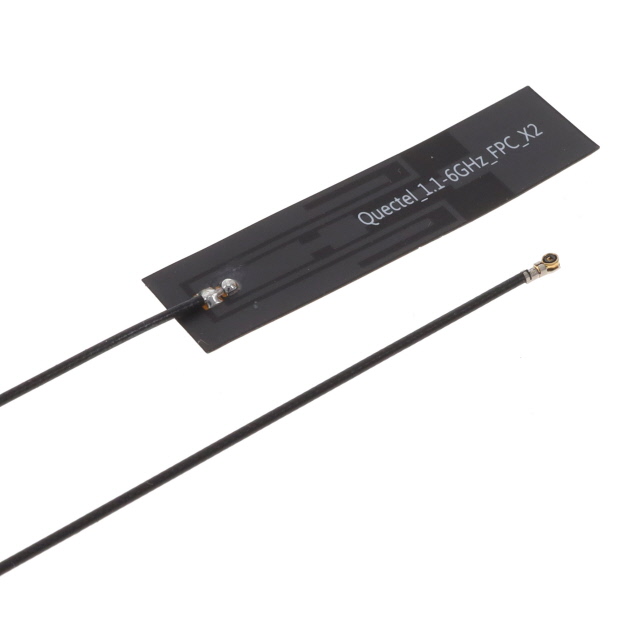

YF0017BA

Manufacturer :

Quectel

Product Category :

RF Antennas

Length :

49 mm

Termination :

IPEX MHF4

Frequency (Center/Band) :

829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 3.65GHz, 4.5GHz, 5.5GHz

Product Category :

Antennas

Mounting Type :

Surface Mount

Center Frequency :

1176 MHz, 1190 MHz, 1202 MHz, 1227 MHz, 1242 MHz, 1268 MHz, 1278 MHz, 1575 MHz, 1602 MHz, 1621 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2200 MHz, 2500 MHz, 3500 MHz, 4500 MHz, 5500 MHz

Subcategory :

Antennas

Applications :

6g

Features :

Cable - 193mm

Brand :

Quectel

Gain :

1.5dBi, 2.8dBi, 2.8dBi, 4.1dBi, 3.6dBi, 4.4dBi, 3dBi

Width :

13 mm

Impedance :

50 Ohms

Number of Bands :

8

Application :

Cellular Radio, Wireless Applications

Cable Type :

193 mm RF1.13

Type :

Passive Antenna

Package :

Bag

Style :

I-Bar Flex

Height (Max) :

0.005" (0.13mm)

Antenna Connector Type :

IPEX MHF4

Manufacturer :

Quectel

Product Status :

Active

Ingress Protection :

-

VSWR :

1.6, 1.7, 1.9, 2, 2.1, 2.6

Maximum Operating Temperature :

+ 85 C

Frequency Group :

Wide Band

Frequency Range :

698MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz

Product :

PCB Antennas

Return Loss :

-

Minimum Operating Temperature :

- 20 C

Mounting Style :

Adhesive Mount

Antenna Type :

Flat Patch

Product Type :

Multiband Antennas

Series :

-

Termination Style :

Connector

Height :

0.13 mm

RF Family/Standard :

Cellular
