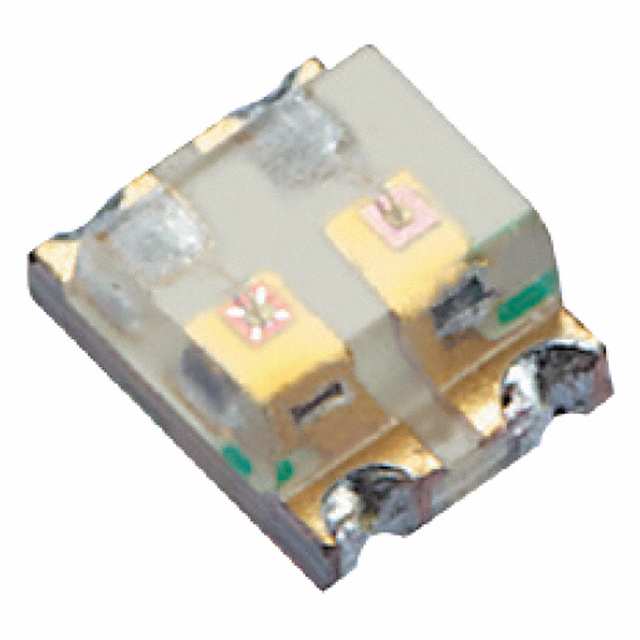

XZURMG62W-1

Manufacturer :

SunLED

Product Category :

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Mount :

Surface Mount

Operating Temperature (Min) :

-40°C

Forward Current-Max :

0.03A

Configuration :

Independent

Factory Lead Time :

6 Weeks

Published :

2011

Shape :

RECTANGULAR

Operating Temperature (Max) :

85°C

RoHS Status :

ROHS3 Compliant

Packing Method :

Tape and Reel

HTS Code :

8541.40.20.00

Number of Terminations :

4

Millicandela Rating :

11mcd Green, 6mcd Red

Optoelectronic Device Type :

DUAL COLOR LED

Lens Size :

1.10mmx1.25mm

Package / Case :

0605 (1513 Metric)

Voltage - Forward (Vf) (Typ) :

2.2V Green 2V Red

Pbfree Code :

yes

Lens Style :

Rectangle with Flat Top

Number of Functions :

1

ECCN Code :

EAR99

Mounting Type :

Surface Mount

Wavelength - Peak :

565nm Green 627nm Red

Terminal Pitch :

1.65mm

Size / Dimension :

1.60mm Lx1.25mm W

Lens Transparency :

Clear

Packaging :

Tape and Reel (TR)

Current - Test :

20mA Green 20mA Red

Lens Color :

Colorless

Wavelength - Dominant :

568nm Green 617nm Red

Luminous Intensity :

6 mcd

Viewing Angle :

120°

Height :

650μm

Color :

Green, Red
