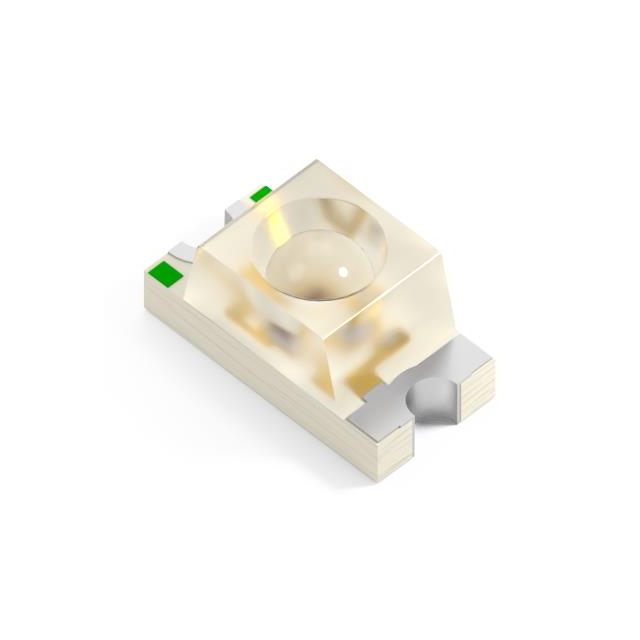

XZMYK60W

Manufacturer :

SunLED

Product Category :

Forward Current-Max :

0.03A

Lens Size :

2.00mmx1.50mm

Size / Dimension :

3.00mm Lx1.50mm W

Luminous Intensity :

347 mcd

Package / Case :

1206 (3016 Metric)

Operating Temperature (Max) :

85°C

Published :

2008

Factory Lead Time :

6 Weeks

Optoelectronic Device Type :

SINGLE COLOR LED

ECCN Code :

EAR99

Lens Style :

Rectangle with Flat Top

Peak Wavelength :

590 nm

RoHS Status :

ROHS3 Compliant

Operating Temperature (Min) :

-40°C

Pbfree Code :

yes

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Color :

Yellow

Height :

1.4mm

HTS Code :

8541.40.20.00

Voltage - Forward (Vf) (Typ) :

2V

Configuration :

Standard

Terminal Pitch :

3mm

Shape :

RECTANGULAR

Current - Test :

20mA

Packaging :

Tape and Reel (TR)

Lens Color :

Colorless

Viewing Angle :

70°

Mounting Type :

Surface Mount

Wavelength - Dominant :

590nm

Lens Transparency :

Clear

Number of Functions :

1

Mount :

Surface Mount

Number of Terminations :

2

Packing Method :

Tape and Reel
