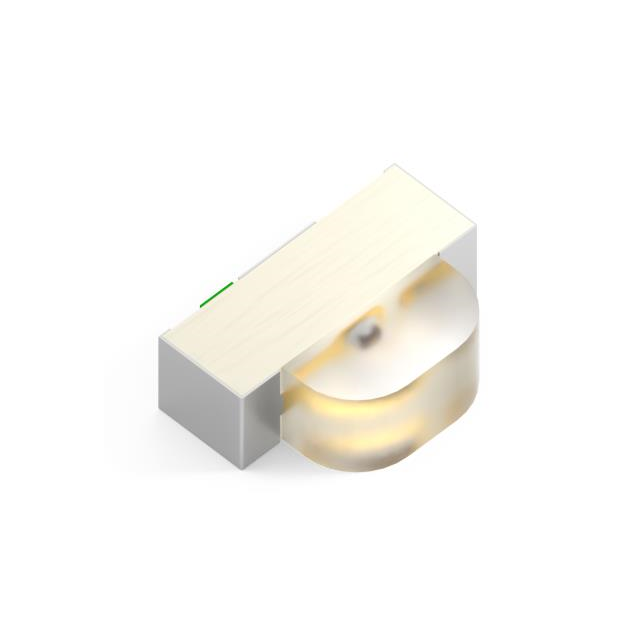

XZMYK56W

Manufacturer :

SunLED

Product Category :

Factory Lead Time :

6 Weeks

Color :

Yellow

Forward Current-Max :

0.03A

Packing Method :

TAPE AND REEL 7"

Operating Temperature (Max) :

85°C

Wavelength - Dominant :

590nm

Pbfree Code :

yes

ECCN Code :

EAR99

Operating Temperature (Min) :

-40°C

Optoelectronic Device Type :

SINGLE COLOR LED

RoHS Status :

ROHS3 Compliant

Published :

2008

Lens Size :

2.00mmx1.00mm

Lens Color :

Colorless

Size / Dimension :

3.00mm Lx2.00mm W

Voltage - Forward (Vf) (Typ) :

2V

Viewing Angle :

120°

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Number of Terminations :

3

Mounting Type :

Surface Mount, Right Angle

Lens Transparency :

Clear

Mount :

Surface Mount

Shape :

RECTANGULAR

Current - Test :

20mA

Luminous Intensity :

148 mcd

Configuration :

Standard

HTS Code :

8541.40.20.00

Packaging :

Cut Tape (CT)

Lens Style :

Rectangle with Domed Top

Height :

1mm

Package / Case :

2-SMD, No Lead

Number of Functions :

1

Peak Wavelength :

590 nm
