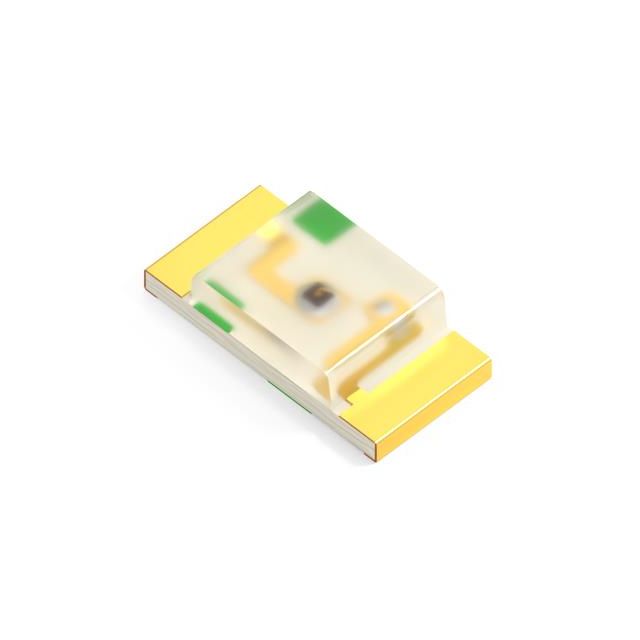

XZMYK55W-1

Manufacturer :

SunLED

Product Category :

Configuration :

Standard

Mounting Type :

Surface Mount

Peak Wavelength :

590 nm

Height :

750μm

Wavelength - Dominant :

590nm

Lens Color :

Colorless

Lens Size :

1.90mmx1.60mm

Published :

2008

Packaging :

Cut Tape (CT)

Viewing Angle :

120°

Lens Transparency :

Clear

Size / Dimension :

3.20mm Lx1.60mm W

RoHS Status :

ROHS3 Compliant

Packing Method :

Tape and Reel

Color :

Yellow

Number of Terminations :

2

Case Code (Imperial) :

1206

Shape :

RECTANGULAR

Package / Case :

1206 (3216 Metric)

Number of Functions :

1

Voltage - Forward (Vf) (Typ) :

2V

Current - Test :

20mA

Lens Style :

Rectangle with Flat Top

Forward Current-Max :

0.03A

Mount :

Surface Mount

Luminous Intensity :

148 mcd

Terminal Pitch :

3.75mm

HTS Code :

8541.40.20.00

Pbfree Code :

yes

Case Code (Metric) :

3216

Operating Temperature (Min) :

-40°C

Factory Lead Time :

6 Weeks

Operating Temperature (Max) :

85°C

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

ECCN Code :

EAR99

Optoelectronic Device Type :

SINGLE COLOR LED
