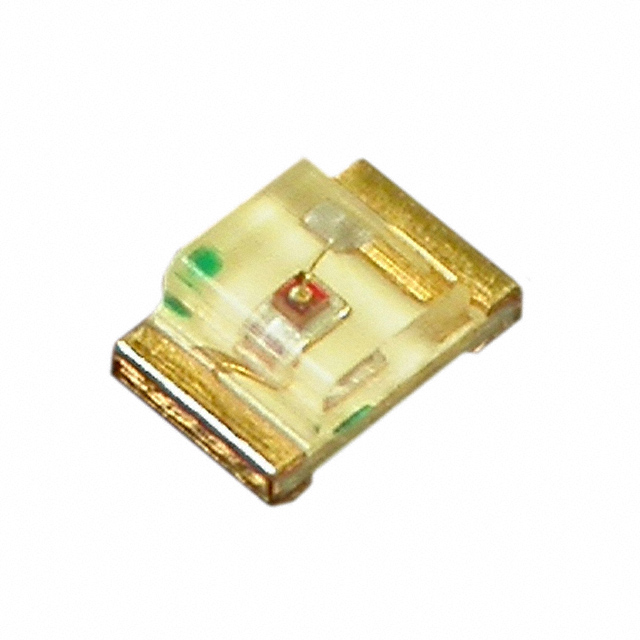

XZMG54W-1

Manufacturer :

SunLED

Product Category :

Optoelectronic Device Type :

SINGLE COLOR LED

Current - Test :

20mA

Lens Size :

1.20mmx1.25mm

Terminal Pitch :

2.35mm

Luminous Intensity :

11 mcd

Packaging :

Cut Tape (CT)

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Operating Temperature (Min) :

-40°C

Mount :

Surface Mount

Shape :

RECTANGULAR

Number of Functions :

1

RoHS Status :

ROHS3 Compliant

Published :

2008

Configuration :

Standard

Case Code (Imperial) :

0805

ECCN Code :

EAR99

Height :

750μm

Color :

Green

Factory Lead Time :

6 Weeks

Package / Case :

0805 (2012 Metric)

Viewing Angle :

120°

Number of Terminations :

2

Case Code (Metric) :

2012

Mounting Type :

Surface Mount

Lens Style :

Rectangle with Flat Top

Operating Temperature (Max) :

85°C

Lens Color :

Colorless

Size / Dimension :

2.00mm Lx1.25mm W

Wavelength - Dominant :

568nm

Wavelength - Peak :

565nm

Pbfree Code :

yes

Lens Transparency :

Clear

HTS Code :

8541.40.20.00

Voltage - Forward (Vf) (Typ) :

2.2V

Forward Current-Max :

0.025A

Packing Method :

Tape and Reel
