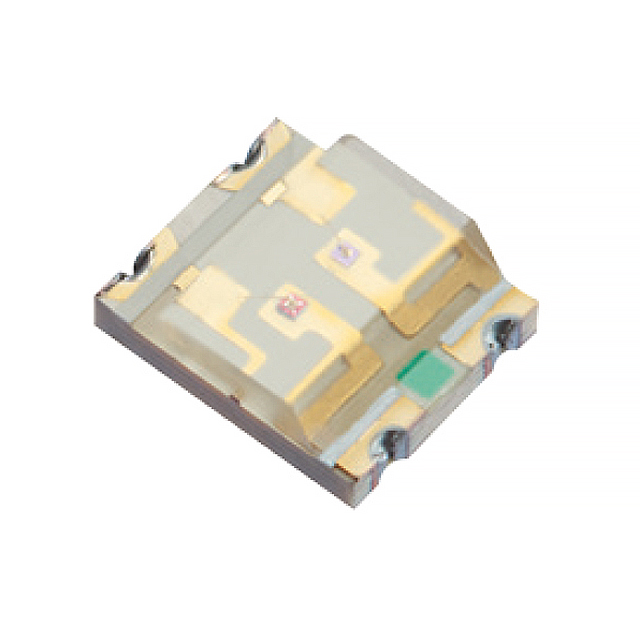

XZMDKCBD55W-8

Manufacturer :

SunLED

Product Category :

Published :

2011

Size / Dimension :

3.20mm Lx1.60mm W

Wavelength - Dominant :

465nm Blue 630nm Red

Number of Terminations :

4

Forward Current-Max :

0.03A

ECCN Code :

EAR99

Mounting Type :

Surface Mount

Factory Lead Time :

6 Weeks

Color :

Blue, Red

Packing Method :

Tape and Reel

Mount :

Surface Mount

Packaging :

Tape and Reel (TR)

Optoelectronic Device Type :

DUAL COLOR LED

RoHS Status :

ROHS3 Compliant

Lens Color :

Colorless

HTS Code :

8541.40.20.00

Luminous Intensity :

397 mcd

Terminal Pitch :

3.2mm

Configuration :

Independent

Height :

1.8mm

Pbfree Code :

yes

Wavelength - Peak :

460nm Blue 645nm Red

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Lens Style :

Round with Domed Top

Number of Functions :

1

Lens Size :

1.60mm Dia

Operating Temperature (Max) :

85°C

Operating Temperature (Min) :

-40°C

Millicandela Rating :

248mcd Blue, 397mcd Red

Viewing Angle :

30°

Package / Case :

1206 (3216 Metric)

Current - Test :

20mA Blue 20mA Red

Lens Transparency :

Clear

Voltage - Forward (Vf) (Typ) :

3.3V Blue 1.95V Red
