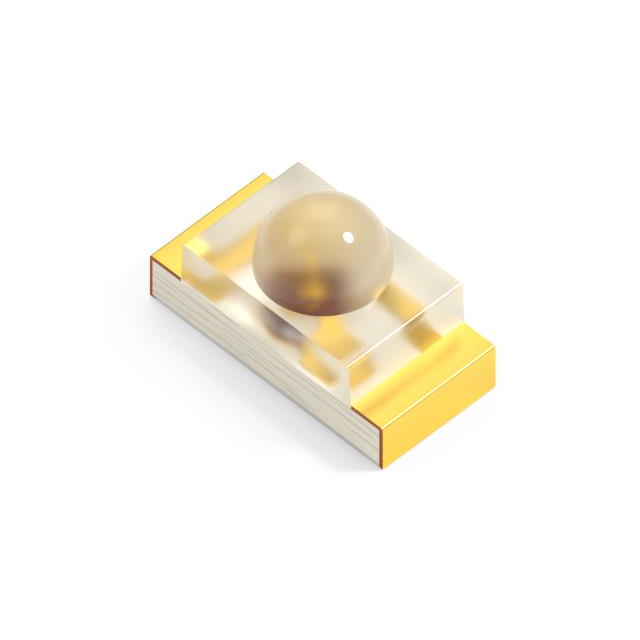

XZMDK53W-8
Or copy the link below:
- Mfr.Part #
- XZMDK53W-8
- Manufacturer
- SunLED
- Package / Case
- 0603 (1608 Metric)
- Datasheet
- Download
- Description
- LED RED CLEAR CHIP SMD
- Stock
- 9,449
- In Stock ：
- 9,449
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- SunLED
- Product Category :
- Mount :
- Surface Mount
- Case Code (Metric) :
- 1608
- Moisture Sensitivity Level (MSL) :
- 3 (168 Hours)
- HTS Code :
- 8541.40.20.00
- Operating Temperature (Max) :
- 85°C
- ECCN Code :
- EAR99
- Current - Test :
- 20mA
- Lens Transparency :
- Clear
- Height :
- 950μm
- RoHS Status :
- ROHS3 Compliant
- Operating Temperature (Min) :
- -40°C
- Terminal Pitch :
- 1.65mm
- Color :
- Red
- Package / Case :
- 0603 (1608 Metric)
- Case Code (Imperial) :
- 0603
- Lens Style :
- Round with Domed Top
- Lens Color :
- Colorless
- Optoelectronic Device Type :
- SINGLE COLOR LED
- Series :
- PixsoLED
- Wavelength - Dominant :
- 630nm
- Lens Size :
- 0.35mm Dia
- Forward Current-Max :
- 0.03A
- Voltage - Forward (Vf) (Typ) :
- 1.95V
- Mounting Type :
- Surface Mount
- Factory Lead Time :
- 6 Weeks
- Packing Method :
- Tape and Reel
- Wavelength - Peak :
- 645nm
- Luminous Intensity :
- 248 mcd
- Viewing Angle :
- 60°
- Configuration :
- Standard
- Packaging :
- Cut Tape (CT)
- Size / Dimension :
- 1.60mm Lx0.80mm W
- Published :
- 2011
- Pbfree Code :
- yes
- Number of Terminations :
- 2
- Number of Functions :
- 1
- Datasheets
- XZMDK53W-8
