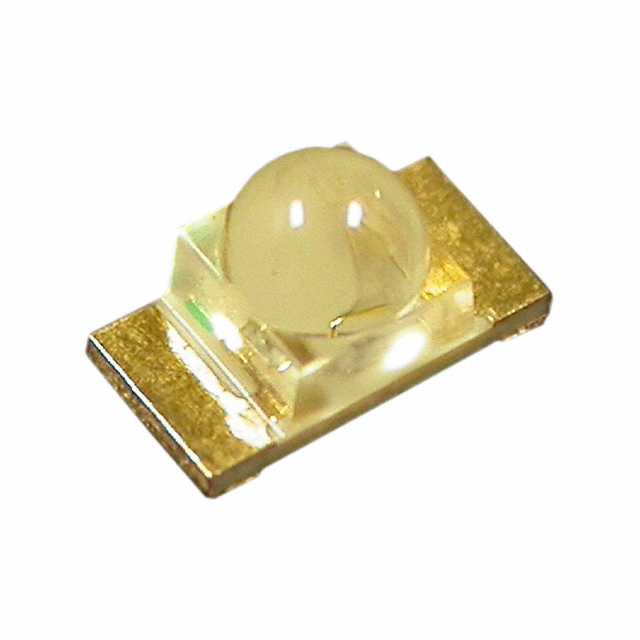

XZDG55W-3

Manufacturer :

SunLED

Product Category :

Mounting Type :

Surface Mount

Viewing Angle :

35°

Voltage - Forward (Vf) (Typ) :

3.3V

ECCN Code :

EAR99

Size / Dimension :

3.20mm Lx1.60mm W

Lens Style :

Round with Domed Top

Case Code (Metric) :

3216

Packing Method :

TR, 7 INCH

HTS Code :

8541.40.20.00

Factory Lead Time :

6 Weeks

Forward Current-Max :

0.025A

Current - Test :

20mA

Case Code (Imperial) :

1206

Configuration :

Standard

Lens Transparency :

Clear

RoHS Status :

ROHS3 Compliant

Height :

1.8mm

Published :

2011

Packaging :

Cut Tape (CT)

Operating Temperature (Min) :

-40°C

Optoelectronic Device Type :

SINGLE COLOR LED

Lens Color :

Colorless

Millicandela Rating :

2290mcd

Operating Temperature (Max) :

85°C

Luminous Intensity :

2.29 cd

Number of Functions :

1

Mount :

Surface Mount

Terminal Pitch :

3.75mm

Wavelength - Peak :

515nm

Lens Size :

1.60mm Dia

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Number of Terminations :

2

Package / Case :

1206 (3216 Metric)

Color :

Green

Wavelength - Dominant :

525nm
