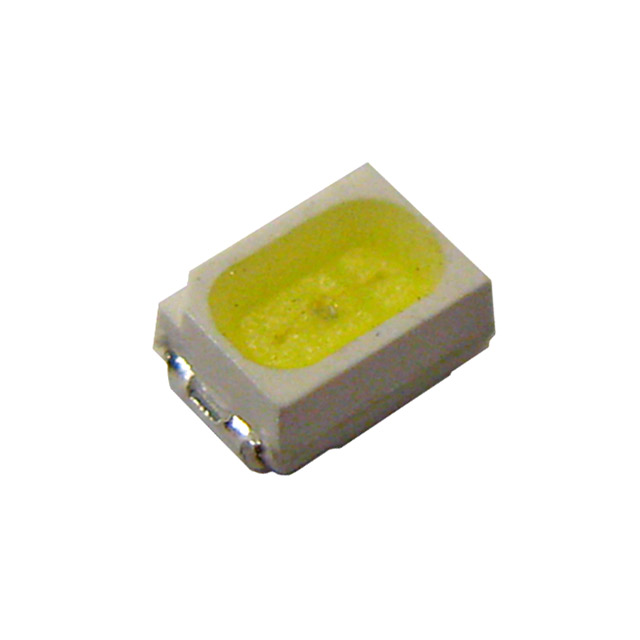

XZCWD105S
Or copy the link below:
- Mfr.Part #
- XZCWD105S
- Manufacturer
- SunLED
- Package / Case
- 2-SMD, J-Lead
- Datasheet
- Download
- Description
- LED 3.0X2.0MM WHT WTR CLR SMD
- Stock
- 3,042
- In Stock ：
- 3,042
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- SunLED
- Product Category :
- Shape :
- RECTANGULAR
- Luminous Intensity :
- 695.0 mcd
- Color :
- White
- Voltage - Forward (Vf) (Typ) :
- 3.3V
- Packaging :
- Cut Tape (CT)
- Current - Test :
- 20mA
- Mounting Type :
- Surface Mount
- Operating Temperature (Min) :
- -40°C
- Packing Method :
- Tape and Reel
- Lens Transparency :
- Clear
- ECCN Code :
- EAR99
- Forward Current-Max :
- 0.03A
- Lens Style :
- Oval with Flat Top
- Moisture Sensitivity Level (MSL) :
- 3 (168 Hours)
- Pbfree Code :
- yes
- Published :
- 2011
- Overall Height :
- 1.3mm
- HTS Code :
- 8541.40.20.00
- Package / Case :
- 2-SMD, J-Lead
- Viewing Angle :
- 125°
- Lens Size :
- 2.50mmx1.50mm
- RoHS Status :
- ROHS3 Compliant
- Height (Max) :
- 1.30mm
- Operating Temperature (Max) :
- 85°C
- Lens Color :
- Colorless
- Size / Dimension :
- 2.70mm Lx2.00mm W
- Surface Mount :
- yes
- Configuration :
- Single
- Millicandela Rating :
- 597mcd
- Optoelectronic Device Type :
- SINGLE COLOR LED
- Number of Functions :
- 1
- Terminal Pitch :
- 2.8mm
- Number of Terminations :
- 2
- Datasheets
- XZCWD105S
XZCWD105S datasheet pdf and LED Indication - Discrete product details from SunLED stock available at
